WB-LB12-3

Waveguide Bridge Support Bracket, 12 in wide for 3-1/2 in OD legs

Finish making your selections or clear them to view relevant specifications.
Download specifications

Product classification

Product Type Support bracket

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 12
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 50.8 mm | 2 in
Width 508 mm | 20 in
Length 152.4 mm | 6 in

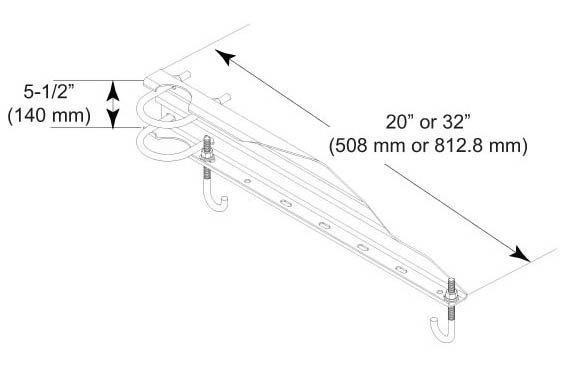

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Brackets | Hardware
Packaging quantity 1
Weight, net 5.4 kg | 11.905 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Support bracket

General specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 12
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 50.8 mm | 2 in
Width 508 mm | 20 in
Length 152.4 mm | 6 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Brackets | Hardware
Packaging quantity 1
Weight, net 5.4 kg | 11.905 lb

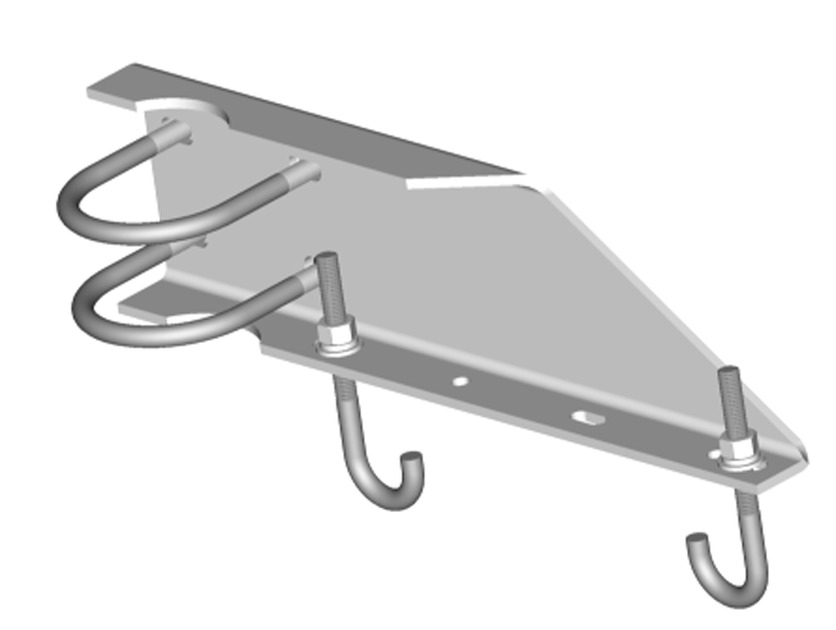

Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
