WB-CY110

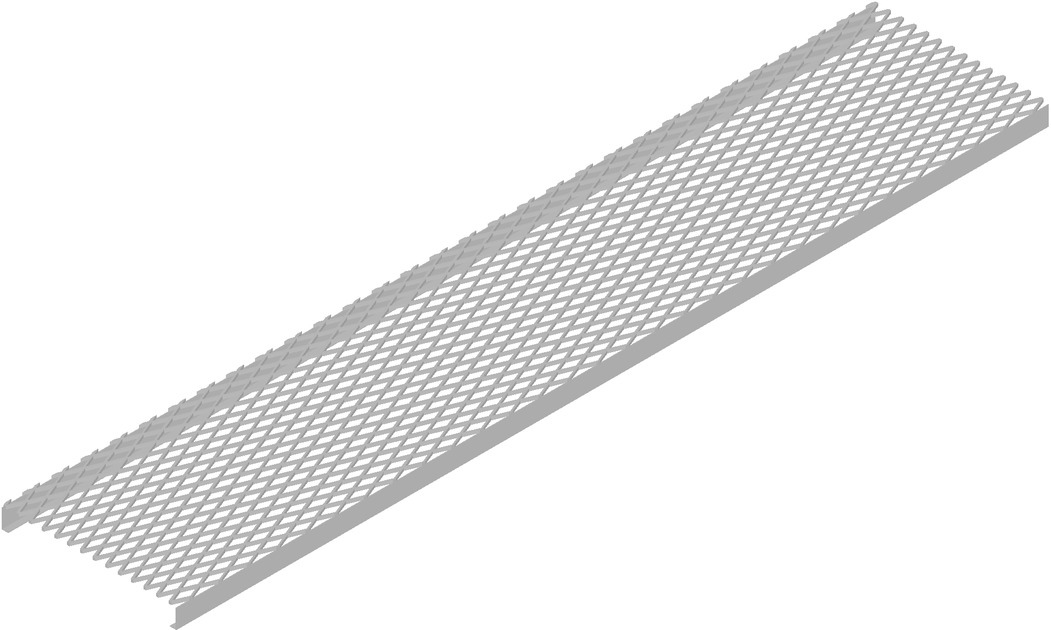

Safety Grated Waveguide Bridge Channel, 12 in x 10 ft
Specifications
Product classification
| Product Type | Waveguide bridge channel |
General specifications
| Application | Waveguide bridge kit, 12 in |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 304.8 mm | 12 in |
| Length | 3048 mm | 120 in |
Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Bridge channel |
| Packaging quantity | 1 |
| Weight, net | 31.8 kg | 70.107 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Waveguide bridge channel |
General specifications
| Application | Waveguide bridge kit, 12 in |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 304.8 mm | 12 in |
| Length | 3048 mm | 120 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Bridge channel |
| Packaging quantity | 1 |
| Weight, net | 31.8 kg | 70.107 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
