MT-347

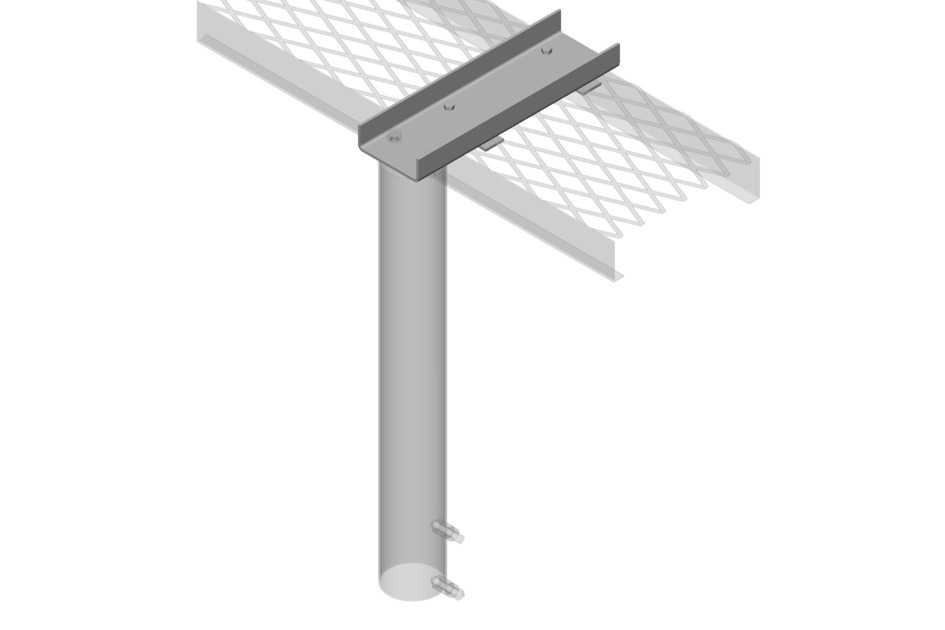

Single Pipe Support Channel Kit for 12 in wide waveguide bridge
Specifications
Product classification
| Product Type | Waveguide bridge channel |
General specifications
| Application | Waveguide bridge kit, 12 in |
| Mounting | Pipe heads |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 127 mm | 5 in |
| Length | 419.1 mm | 16.5 in |

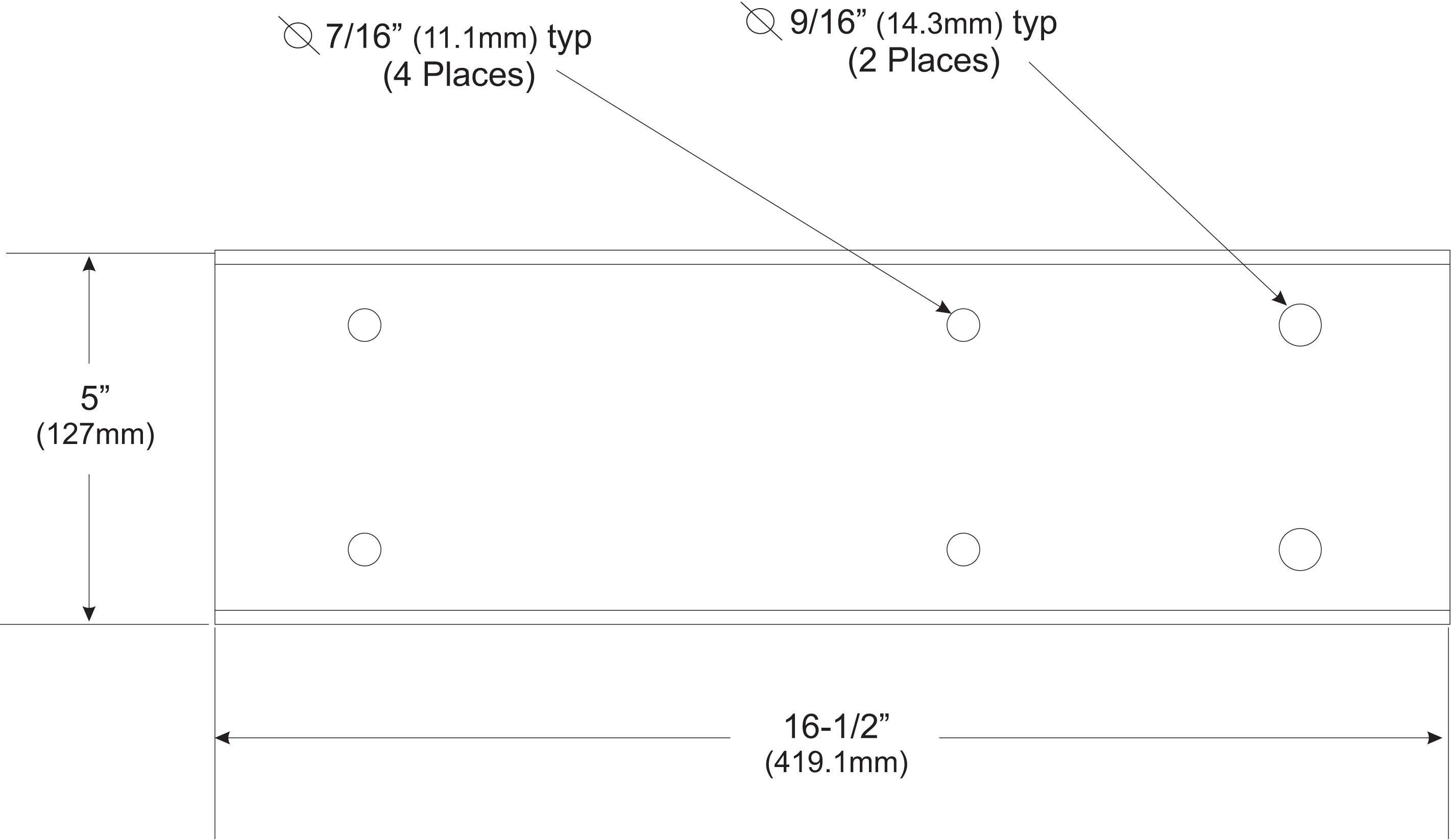

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Channel | Hardware |
| Packaging quantity | 1 |
| Weight, net | 3.6 kg | 7.937 lb |
Product classification
| Product Type | Waveguide bridge channel |
General specifications
| Application | Waveguide bridge kit, 12 in |
| Mounting | Pipe heads |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 127 mm | 5 in |
| Length | 419.1 mm | 16.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Channel | Hardware |
| Packaging quantity | 1 |
| Weight, net | 3.6 kg | 7.937 lb |
| Click on image to enlarge. |
