WT-SPM-E1
Stackable Pod Mount Extension, 12 in
Specifications
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Stackable pod mount |
Dimensions
| Height | 1320.8 mm | 52 in |
| Width | 1320.8 mm | 52 in |
| Length | 304.8 mm | 12 in |
| Compatible Diameter | 1219.2 mm | 48 in |
| Pipe Outer Diameter | 1066.8 mm | 42 in |

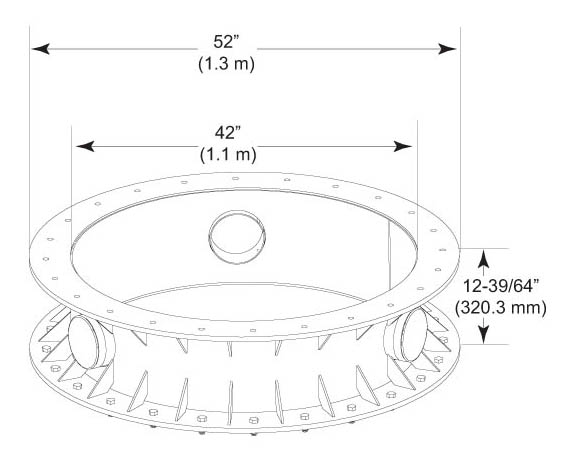

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Extension | Hardware |
| Packaging quantity | 1 |
| Weight, net | 171.912 kg | 379 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Stackable pod mount |
Dimensions
| Height | 1320.8 mm | 52 in |
| Width | 1320.8 mm | 52 in |
| Length | 304.8 mm | 12 in |
| Compatible Diameter | 1219.2 mm | 48 in |
| Pipe Outer Diameter | 1066.8 mm | 42 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Extension | Hardware |
| Packaging quantity | 1 |
| Weight, net | 171.912 kg | 379 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
