WT-HRM2-B
Water Tower Top Rail Mount for 2-3/8 in OD mounting pipe, plain end pipe not included
Specifications
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Handrail | Toe board |
| Pipe, quantity | 0 |
Dimensions
| Height | 889 mm | 35 in |
| Width | 203.2 mm | 8 in |
| Length | 609.6 mm | 24 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 228.6 mm | 9 in |

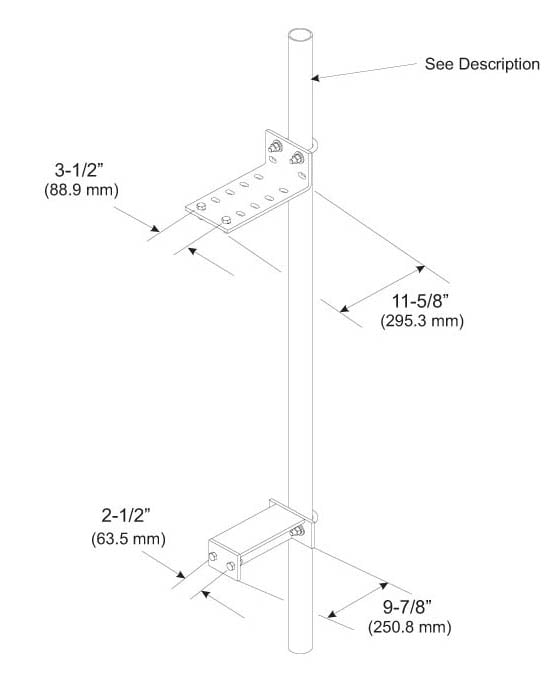

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 9.299 kg | 20.5 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Handrail | Toe board |
| Pipe, quantity | 0 |
Dimensions
| Height | 889 mm | 35 in |
| Width | 203.2 mm | 8 in |
| Length | 609.6 mm | 24 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 228.6 mm | 9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 9.299 kg | 20.5 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
