WP-197
Work Platform for Single Pipe Support Arm
Specifications
Product classification
Product Type | Work platforms for support arm |
Dimensions
Height | 990.6 mm | 39 in |
Platform Width | 304.8 mm | 12 in |
Width | 762 mm | 30 in |
Length | 304.8 mm | 12 in |

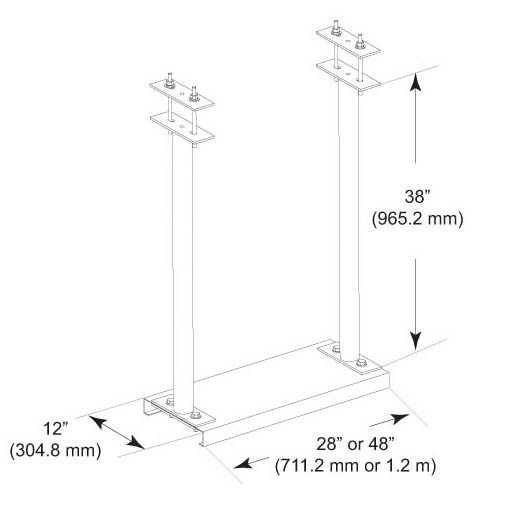

Outline drawing
Click on image to enlarge. |
Material specifications
Material Type | Hot dip galvanized steel |
Packaging and weights
Included | Clamps | Grating | Hardware |
Packaging quantity | 1 |
Weight, net | 37.1 kg | 81.791 lb |
Regulatory compliance/certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
Product Type | Work platforms for support arm |
Dimensions
Height | 990.6 mm | 39 in |
Platform Width | 304.8 mm | 12 in |
Width | 762 mm | 30 in |
Length | 304.8 mm | 12 in |
Material specifications
Material Type | Hot dip galvanized steel |
Packaging and weights
Included | Clamps | Grating | Hardware |
Packaging quantity | 1 |
Weight, net | 37.1 kg | 81.791 lb |
Click on image to enlarge. |
Regulatory compliance/certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
