HS-600
Stand-Off Bracket, heavy duty, 72 in, includes pipe
Specifications
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Tower member |
| Note | One 72 in x 8 in panel antenna per sector |
| Pipe, quantity | 1 |
Dimensions
| Height | 1066.8 mm | 42 in |
| Width | 76.2 mm | 3 in |
| Length | 1828.8 mm | 72 in |
| Pipe Length | 1066.8 mm | 42 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
| Stand-off Distance | 1828.8 mm | 72 in |

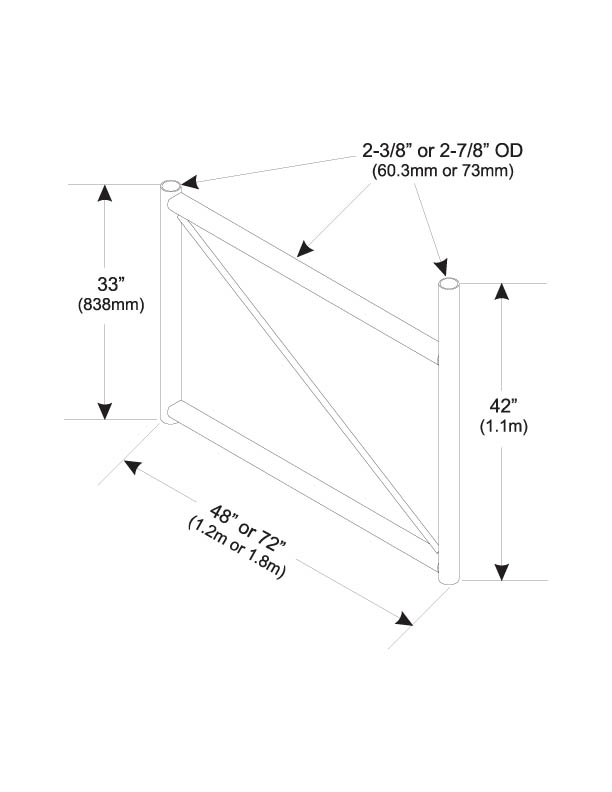

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 48.7 kg | 107.365 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Tower member |
| Note | One 72 in x 8 in panel antenna per sector |
| Pipe, quantity | 1 |
Dimensions
| Height | 1066.8 mm | 42 in |
| Width | 76.2 mm | 3 in |
| Length | 1828.8 mm | 72 in |
| Pipe Length | 1066.8 mm | 42 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
| Stand-off Distance | 1828.8 mm | 72 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 48.7 kg | 107.365 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
