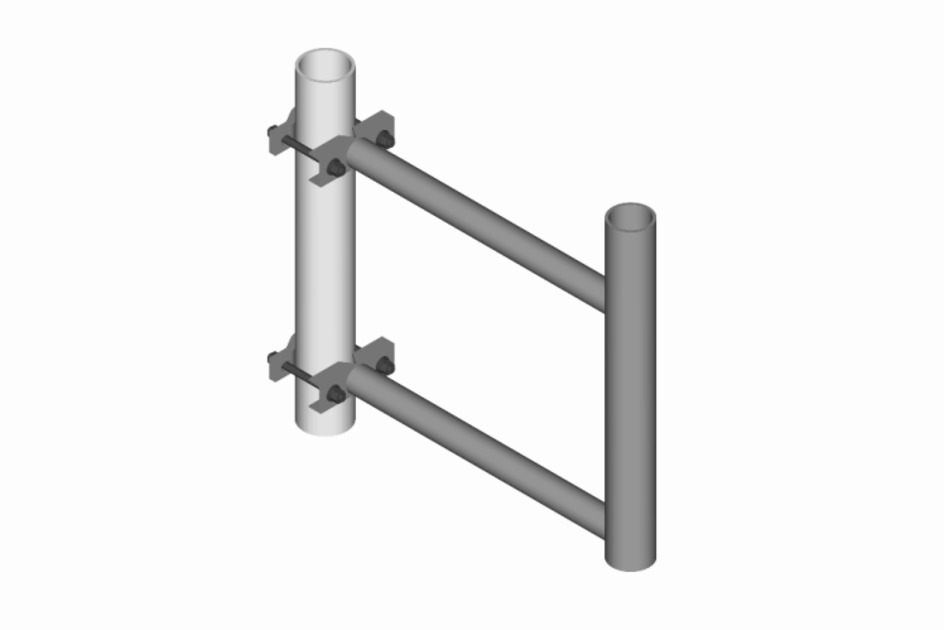

DM-100
Microwave Antenna Stand-Off Bracket, 24 in
Specifications
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Straight or tapered legs up to 88.9 mm (3-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 609.6 mm | 24 in |
| Width | 152.4 mm | 6 in |
| Length | 609.6 mm | 24 in |
| Stand-off Distance | 609.6 mm | 24 in |

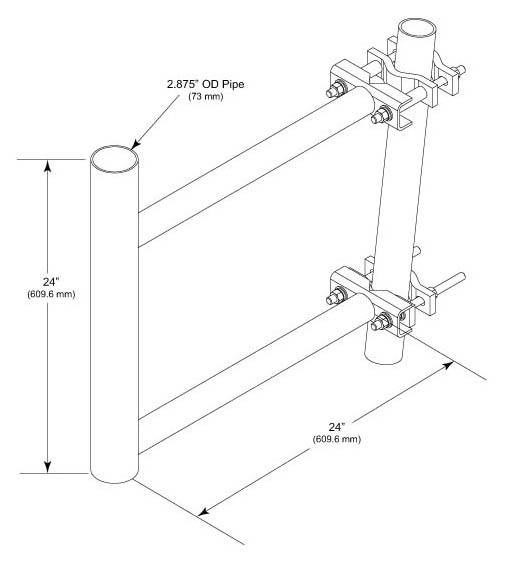

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 14.3 kg | 31.526 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Straight or tapered legs up to 88.9 mm (3-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 609.6 mm | 24 in |
| Width | 152.4 mm | 6 in |
| Length | 609.6 mm | 24 in |
| Stand-off Distance | 609.6 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 14.3 kg | 31.526 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
