CL-0910-U
Base product: CABLE-LADDER
Universal Cable Ladder Kit, 30 in x 10 ft, 9-hole rung
Specifications
Product classification
Product Type | Ladder kit |
General specifications
Cable Runs, quantity | 9 |
Mounting | Round and angle legs |
Dimensions
Height | 76.2 mm | 3 in |
Width | 762 mm | 30 in |
Length | 3048 mm | 120 in |

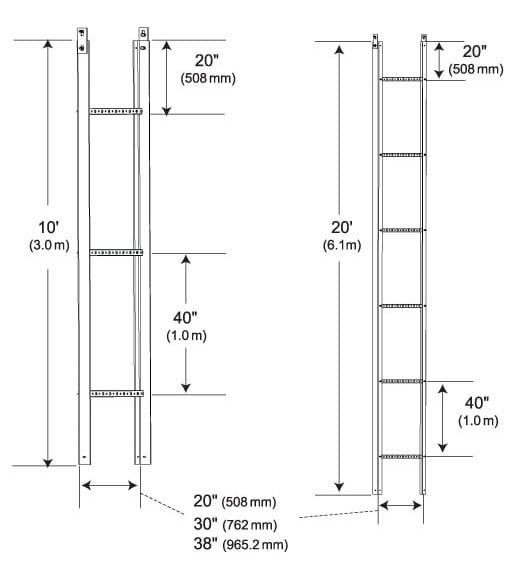

Outline drawing
Click on image to enlarge. |
Material specifications
Material Type | Hot dip galvanized steel |
Packaging and weights
Included | Attachment kits | Ladder | Splice plates |
Packaging quantity | 1 |
Weight, net | 27 kg | 59.525 lb |
Regulatory compliance/certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
Product Type | Ladder kit |
General specifications
Cable Runs, quantity | 9 |
Mounting | Round and angle legs |
Dimensions
Height | 76.2 mm | 3 in |
Width | 762 mm | 30 in |
Length | 3048 mm | 120 in |
Material specifications
Material Type | Hot dip galvanized steel |
Packaging and weights
Included | Attachment kits | Ladder | Splice plates |
Packaging quantity | 1 |
Weight, net | 27 kg | 59.525 lb |
Click on image to enlarge. |
Regulatory compliance/certifications
Agency | Classification |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
