912MCLICK
Base product: CLICK-SERIES-HANGERS

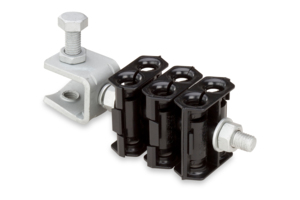

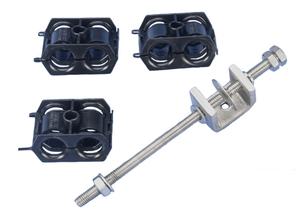

Miniature Click-on Hanger for 9–12 mm cable - Hardware Sold Separately (search MCLICK-SERIES-HARDWARE for options avaliable)
Specifications
Product classification
| Product Type | Hanger kit |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Cables per Hanger | 2 |
| Color | Black |
| Hanger Type | Click-on hanger |
| Mounting | M8 through hole |
Dimensions
| Maximum Stack Height | 3 |
| Height | 38.1 mm | 1.500 in |
| Width | 20.1 mm | 0.791 in |
| Length | 42.9 mm | 1.689 in |
| Compatible Cable Diameter Range | 9–12 mm |
| Compatible Diameter, maximum | 12 mm | 0.472 in |
| Compatible Diameter, minimum | 9 mm | 0.354 in |
| Nominal Size | 1/4 in | 3/8 in |
Electrical specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material specifications
| Material Type | Engineered plastic |
Mechanical specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and weights
| Height, packed | 15.2 cm | 5.984 in |
| Width, packed | 20.3 cm | 7.992 in |
| Length, packed | 2.5 cm | 0.984 in |
| Packaging quantity | 10 |
| Weight, gross | 0.13 kg | 0.287 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Hanger kit |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Cables per Hanger | 2 |
| Color | Black |
| Hanger Type | Click-on hanger |
| Mounting | M8 through hole |
Dimensions
| Maximum Stack Height | 3 |
| Height | 38.1 mm | 1.500 in |
| Width | 20.1 mm | 0.791 in |
| Length | 42.9 mm | 1.689 in |
| Compatible Cable Diameter Range | 9–12 mm |
| Compatible Diameter, maximum | 12 mm | 0.472 in |
| Compatible Diameter, minimum | 9 mm | 0.354 in |
| Nominal Size | 1/4 in | 3/8 in |
Electrical specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material specifications
| Material Type | Engineered plastic |
Mechanical specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ≥100 hours exposure in accelerated UV life chamber |
Packaging and weights
| Height, packed | 15.2 cm | 5.984 in |
| Width, packed | 20.3 cm | 7.992 in |
| Length, packed | 2.5 cm | 0.984 in |
| Packaging quantity | 10 |
| Weight, gross | 0.13 kg | 0.287 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
