E14R50P01
Tower Mounted Amplifier, Twin 800MHz with AISG 2.0, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed to boost UP-Link Coverage and KPIs
Specifications
Product classification
| Product Type | 1-BTS:1-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 237 mm | 9.331 in |
| Width | 179 mm | 7.047 in |
| Depth | 96 mm | 3.78 in |

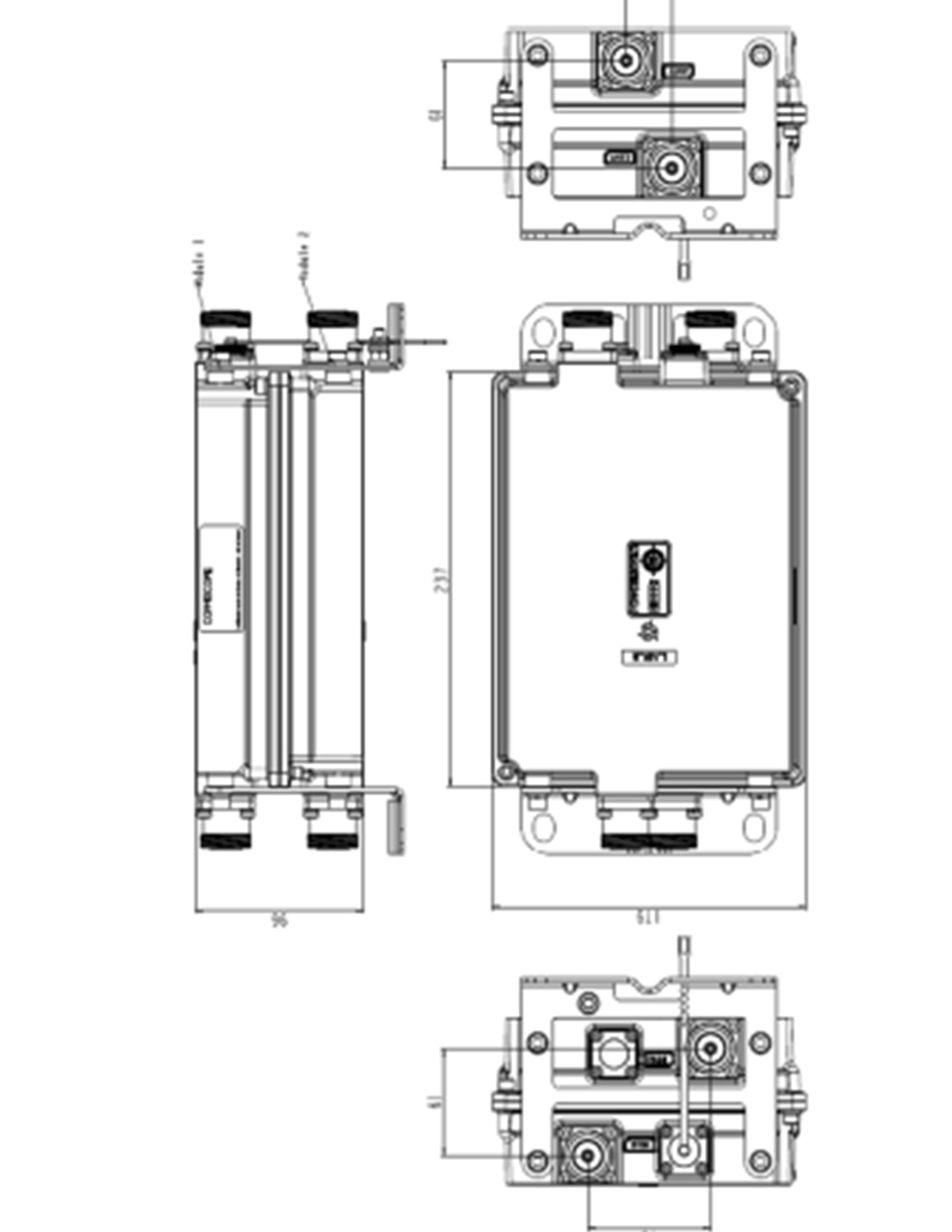

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, Band Pass | EDD 800 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Default Protocol | AISG 2.0 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 |
| Branch | 1 |
| Port Designation | ANT |
| License Band | EDD 800, Band Pass |
Electrical specifications, rx uplink
| Frequency Range, MHz | 832–862 |
| Bandwidth, MHz | 30.00 |
| Gain, nominal, dB | 12.0 |
| Gain Tolerance, dB | ±1.0 |
| Noise Figure, typical, dB | 1.5 |
| Total Group Delay, typical, ns | 193 |
| Return Loss, typical, dB | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.5 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 791–821 |
| Bandwidth, MHz | 30.00 |
| Insertion Loss, typical, dB | 0.50 |
| Total Group Delay, typical, ns | 72 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 150 |
| Input Power, PEP, maximum, W | 3,000 |
| 3rd Order PIM, typical, dBc | -160 |
| 5th Order PIM Test Method | 2 x 20 W CW tones |

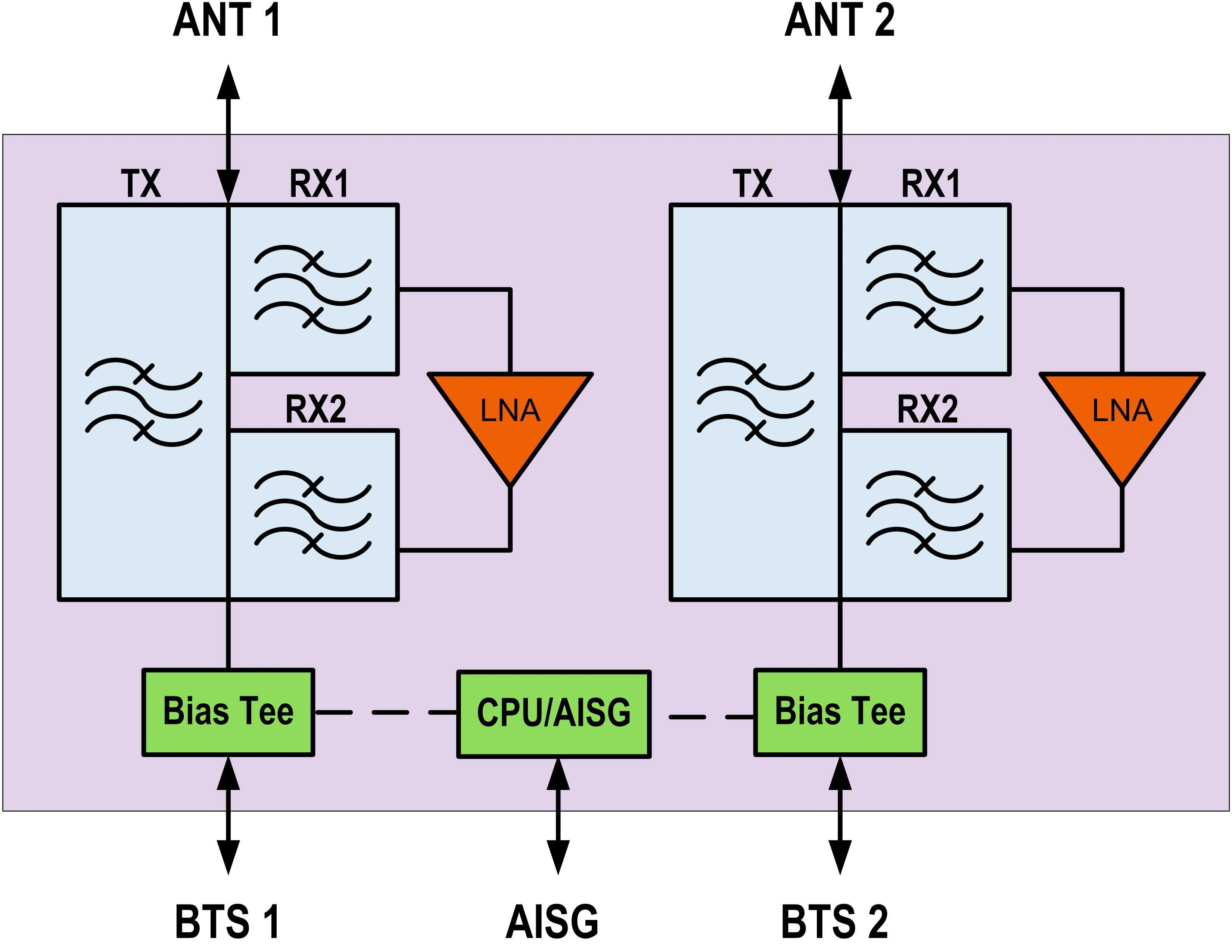

Block diagram
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, net | 6 kg | 13.228 lb |
Product classification
| Product Type | 1-BTS:1-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 237 mm | 9.331 in |
| Width | 179 mm | 7.047 in |
| Depth | 96 mm | 3.78 in |
Electrical specifications
| License Band, Band Pass | EDD 800 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Default Protocol | AISG 2.0 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 |
| Branch | 1 |
| Port Designation | ANT |
| License Band | EDD 800, Band Pass |
Electrical specifications, rx uplink
| Frequency Range, MHz | 832–862 |
| Bandwidth, MHz | 30.00 |
| Gain, nominal, dB | 12.0 |
| Gain Tolerance, dB | ±1.0 |
| Noise Figure, typical, dB | 1.5 |
| Total Group Delay, typical, ns | 193 |
| Return Loss, typical, dB | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.5 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 791–821 |
| Bandwidth, MHz | 30.00 |
| Insertion Loss, typical, dB | 0.50 |
| Total Group Delay, typical, ns | 72 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 150 |
| Input Power, PEP, maximum, W | 3,000 |
| 3rd Order PIM, typical, dBc | -160 |
| 5th Order PIM Test Method | 2 x 20 W CW tones |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, net | 6 kg | 13.228 lb |
