E15V80P03
PCS Twin In-Band Diplexer C3 Block, ADBE/C3 Bands
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Application | Indoor | Outdoor |
| Connector Interface | 7-16 DIN Female |
| Connector Interface Style | Long neck |
Dimensions
| Height | 231 mm | 9.094 in |
| Width | 231 mm | 9.094 in |
| Depth | 102 mm | 4.016 in |
| Ground Screw Diameter | 8 mm | 0.315 in |

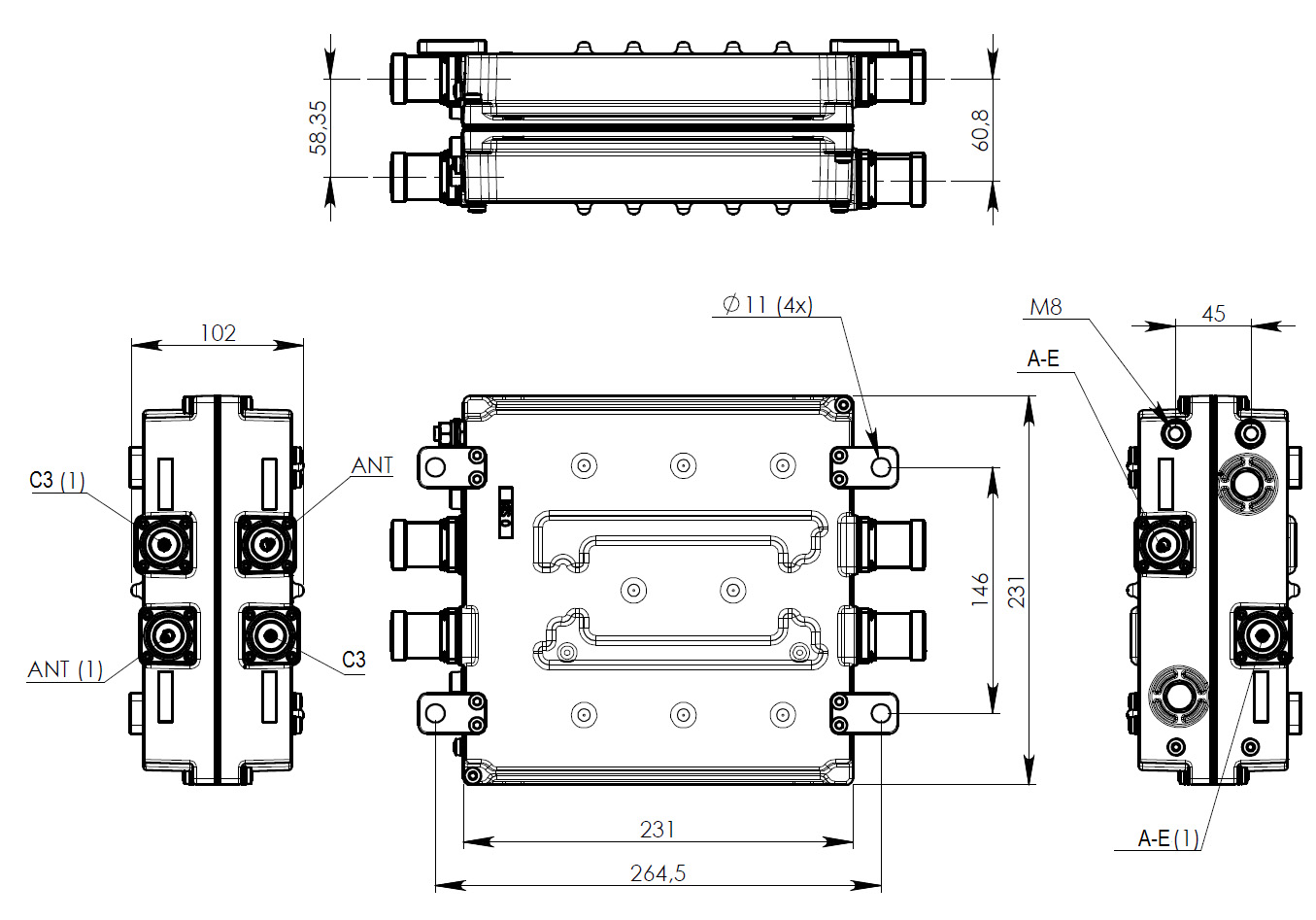

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| 3rd Order IMD, maximum | 155 dBc |
| Lightning Surge Current | 20 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, rx (uplink)
| Frequency Band | 1850 – 1890 MHz |
| Insertion Loss, maximum | 0.5 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 30 dB |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1895 – 1900 MHz |
| Isolation, minimum | 30 dB |
| Insertion Loss, maximum | 0.6 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1930 – 1970 MHz |
| Isolation, minimum | 30 dB |
| Input Power, PEP, maximum | 3000 W |
| Input Power, RMS, maximum | 100 W |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 1975 – 1980 MHz |
| Input Power, PEP, maximum | 3000 W |
| Insertion Loss, typical | 0.6 dB |
| Isolation, minimum | 30 dB |
| Return Loss, minimum | 18 dB |

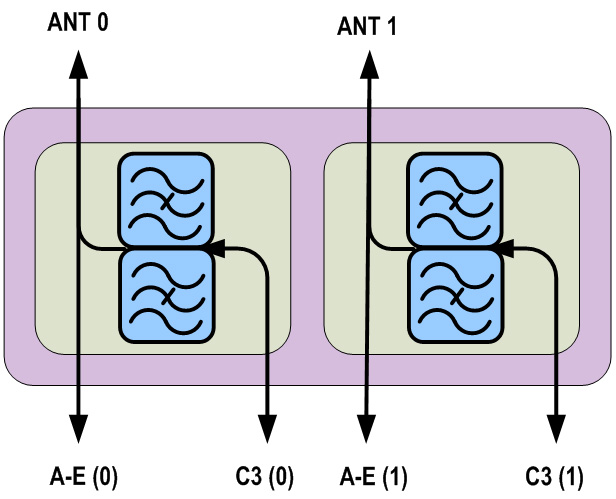

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Brackets |
| Weight, net | 7.7 kg | 16.976 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Application | Indoor | Outdoor |
| Connector Interface | 7-16 DIN Female |
| Connector Interface Style | Long neck |
Dimensions
| Height | 231 mm | 9.094 in |
| Width | 231 mm | 9.094 in |
| Depth | 102 mm | 4.016 in |
| Ground Screw Diameter | 8 mm | 0.315 in |
Electrical specifications
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| 3rd Order IMD, maximum | 155 dBc |
| Lightning Surge Current | 20 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, rx (uplink)
| Frequency Band | 1850 – 1890 MHz |
| Insertion Loss, maximum | 0.5 dB |
| Return Loss, minimum | 18 dB |
| Isolation, minimum | 30 dB |
Electrical specifications 2, rx (uplink)
| Frequency Band | 1895 – 1900 MHz |
| Isolation, minimum | 30 dB |
| Insertion Loss, maximum | 0.6 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications, tx (downlink)
| Frequency Band | 1930 – 1970 MHz |
| Isolation, minimum | 30 dB |
| Input Power, PEP, maximum | 3000 W |
| Input Power, RMS, maximum | 100 W |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum | 18 dB |
Electrical specifications 2, tx (downlink)
| Frequency Band | 1975 – 1980 MHz |
| Input Power, PEP, maximum | 3000 W |
| Insertion Loss, typical | 0.6 dB |
| Isolation, minimum | 30 dB |
| Return Loss, minimum | 18 dB |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Brackets |
| Weight, net | 7.7 kg | 16.976 lb |
