MP-PP15M-15C-126
Base product: MP-PP-SERIES
PIM Optimized Adjustable Monopole Platform with 15ft Face - 2-7/8in OD Face Pipes & Top Rail - Includes (15) 2-7/8in OD x 126in Antenna Pipes
Specifications
Product classification
| Product Type | Co-location platform |
| Product Brand | PIM-guard |
General specifications
| Mounting | Monopole, 304.8–1143 mm (12–45 in) OD |
| Pipe, quantity | 15 |
| Sectors, quantity | 3 |
Dimensions
| Height | 3200.400 mm | 126 in |
| Face Width | 4.572 m | 15 ft |
| Width | 4572.000 mm | 180 in |
| Pipe Length | 3200.400 mm | 126 in |
| Face Support Pipe Diameter | 73.152 mm | 2.88 in |
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
| Pipe Outer Diameter | 73.152 mm | 2.88 in |

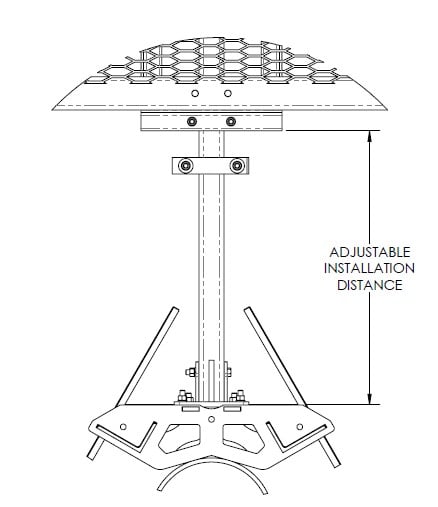

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 1463.969 kg | 3227.5 lb |
Product classification
| Product Type | Co-location platform |
| Product Brand | PIM-guard |
General specifications
| Mounting | Monopole, 304.8–1143 mm (12–45 in) OD |
| Pipe, quantity | 15 |
| Sectors, quantity | 3 |
Dimensions
| Height | 3200.400 mm | 126 in |
| Face Width | 4.572 m | 15 ft |
| Width | 4572.000 mm | 180 in |
| Pipe Length | 3200.400 mm | 126 in |
| Face Support Pipe Diameter | 73.152 mm | 2.88 in |
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
| Pipe Outer Diameter | 73.152 mm | 2.88 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 1463.969 kg | 3227.5 lb |
