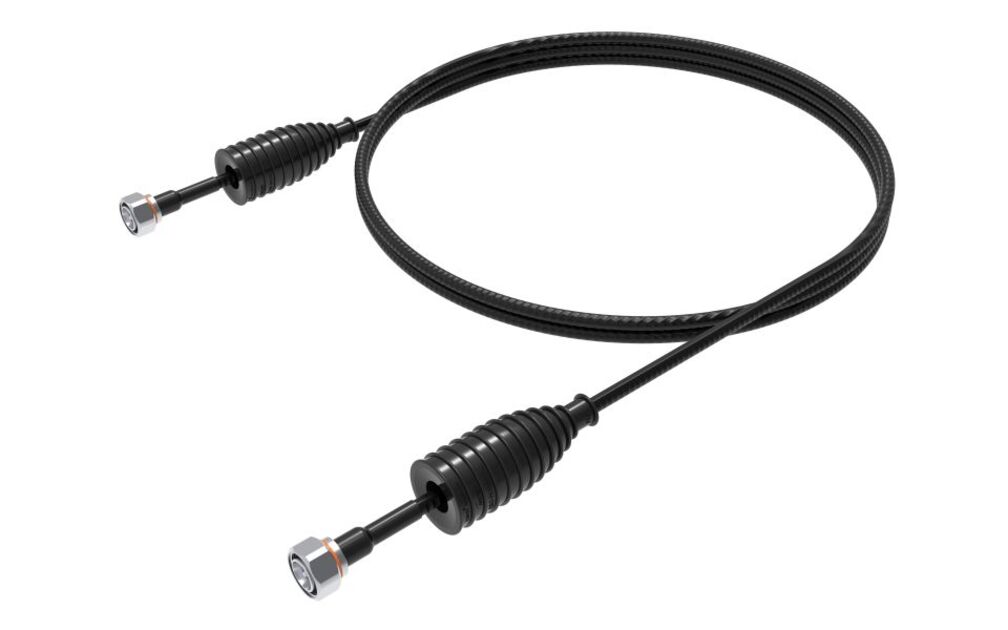

F1-HMHM-3-SGW-D
Base product: F1-HMHM-SGW-D
D-CLASS FSJ1-50A SureFlex® Jumper with interface types 4.3-10 Male and 4.3-10 Male with HELIAX® SureGuard weatherproofing boot , 3 ft
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.91 m | 2.986 ft |
| Cable Length Unit | Feet |
| Nominal Size | 1/4 in |
Logo image
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 698–960 MHz | 1.152 | 23.02 |
| 1700–2200 MHz | 1.152 | 23.02 |
| 2500–2700 MHz | 1.152 | 23.02 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Weatherproofing Method | HELIAX® SureGuard weatherproofing boot |
Packaging and weights
| Included | Weatherproofing boot |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.91 m | 2.986 ft |
| Cable Length Unit | Feet |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 698–960 MHz | 1.152 | 23.02 |
| 1700–2200 MHz | 1.152 | 23.02 |
| 2500–2700 MHz | 1.152 | 23.02 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Weatherproofing Method | HELIAX® SureGuard weatherproofing boot |
Packaging and weights
| Included | Weatherproofing boot |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
