CA-DFDR
7-16 DIN Female to 7-16 DIN Male Right Angle Adapter
Specifications
Product classification
| Product Type | Adapter |
General specifications
| Body Style | Right angle |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 31.75 mm | 1.25 in |
| Length | 53 mm | 2.087 in |
| Diameter | 31.75 mm | 1.25 in |

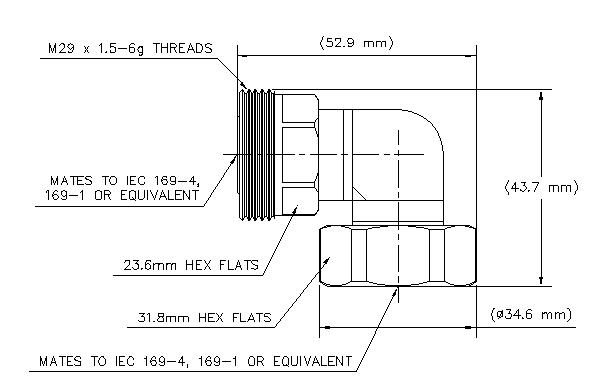

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Average Power at Frequency | 1,300.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 28.8 kW |
| RF Operating Voltage, maximum (vrms) | 1200 V |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–3000 MHz | 1.083 | 27.99 |
| 3000–6000 MHz | 1.173 | 21.98 |
Mechanical specifications
| Coupling Nut Proof Torque | 50 N-m | 442.537 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-4:17 |
| Coupling Nut Retention Force | 800 N | 179.847 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:15.2.6 |
| Insertion Force | 200 N | 44.962 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 171 g | 0.377 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Adapter |
General specifications
| Body Style | Right angle |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 31.75 mm | 1.25 in |
| Length | 53 mm | 2.087 in |
| Diameter | 31.75 mm | 1.25 in |
Electrical specifications
| Average Power at Frequency | 1,300.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 28.8 kW |
| RF Operating Voltage, maximum (vrms) | 1200 V |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.083 | 27.99 |
| 3000–6000 MHz | 1.173 | 21.98 |
Mechanical specifications
| Coupling Nut Proof Torque | 50 N-m | 442.537 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-4:17 |
| Coupling Nut Retention Force | 800 N | 179.847 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:15.2.6 |
| Insertion Force | 200 N | 44.962 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 171 g | 0.377 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
