HELIAX® Remote Radio Head Power Y-Cable, OVP Top Enclosure End: one Red and one Black 8 AWG Conductors. RRU end: 2x8 AWG power cords with 1 Red and 1 Black conductors per cord. RRU length 2 feet, OVP length 25 feet
Specifications
Product classification
Regional Availability | North America |
Product Type | Power cable assembly |
Product Series | PWRT |
Ordering Note | ANDREW® non-standard product |
General specifications
Cable Type | Power |
Conductors, quantity | 2 |
Construction Type | Discrete power cable | Non-armored |
Jacket Color | Black |
Jacket Color, singles | Black | Red |
Supported Application | Industrial |
Dimensions
Cable Length | 8.23 m | 27 m |
Diameter Over Jacket, nominal | 11.303 mm | 0.445 in |
Conductor Gauge, singles | 8 AWG |
Outer Shield (Braid) Gauge | 36 AWG |

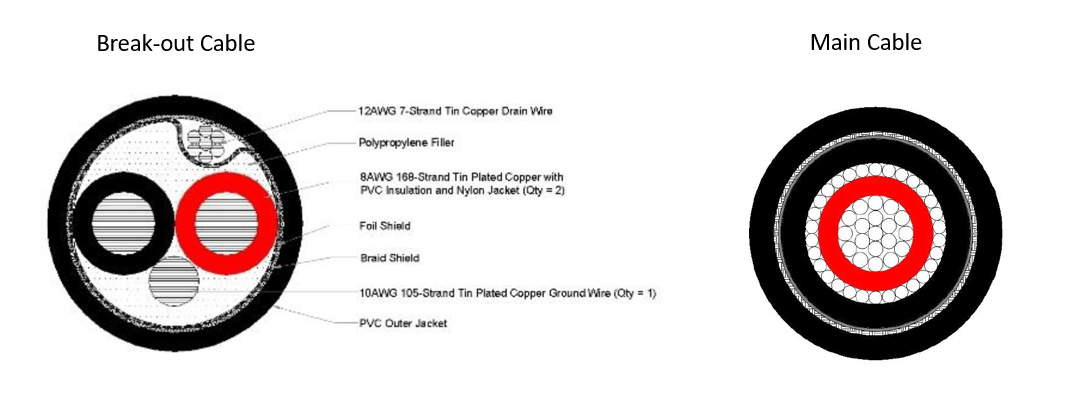

Cross section drawing
Click on image to enlarge. |
Material specifications
Conductor Material | Tinned copper |
Dielectric Material | PVC |
Drain Wire Material | Tinned copper |
Filler Material | Polypropylene |
Ground Wire Material | Tinned copper |
Insulation Material, singles | PVC |
Jacket Material | PVC |
Outer Shield (Braid) Coverage | 65 % |
Outer Shield (Braid) Material | Tinned copper |
Outer Shield (Tape) Material | Aluminum/Poly, non-bonded |
Environmental specifications
Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
Environmental Space | UV resistant for outdoor and/or direct burial installations |
Safety Standard | NEC Article 336 (Type TC) |
Packaging and weights
Cable weight | 312.514 kg/km | 210 kg/m |
Regulatory compliance/certifications
Agency | Classification |
CHINA-ROHS
![]() |
Below maximum concentration value |
ROHS | Compliant |
UK-ROHS | Compliant |
REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
Regional Availability | North America |
Product Type | Power cable assembly |
Product Series | PWRT |
Ordering Note | ANDREW® non-standard product |
General specifications
Cable Type | Power |
Conductors, quantity | 2 |
Construction Type | Discrete power cable | Non-armored |
Jacket Color | Black |
Jacket Color, singles | Black | Red |
Supported Application | Industrial |
Dimensions
Cable Length | 8.23 m | 27 m |
Diameter Over Jacket, nominal | 11.303 mm | 0.445 in |
Conductor Gauge, singles | 8 AWG |
Outer Shield (Braid) Gauge | 36 AWG |
Material specifications
Conductor Material | Tinned copper |
Dielectric Material | PVC |
Drain Wire Material | Tinned copper |
Filler Material | Polypropylene |
Ground Wire Material | Tinned copper |
Insulation Material, singles | PVC |
Jacket Material | PVC |
Outer Shield (Braid) Coverage | 65 % |
Outer Shield (Braid) Material | Tinned copper |
Outer Shield (Tape) Material | Aluminum/Poly, non-bonded |
Environmental specifications
Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
Environmental Space | UV resistant for outdoor and/or direct burial installations |
Safety Standard | NEC Article 336 (Type TC) |
Packaging and weights
Cable weight | 312.514 kg/km | 210 kg/m |
Click on image to enlarge. |
Regulatory compliance/certifications
Agency | Classification |
CHINA-ROHS
![]() |
Below maximum concentration value |
ROHS | Compliant |
UK-ROHS | Compliant |
REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
