C61L01P42
Power Cable Assembly, TMA, dual SMA male to receive multicoupler, 8 m
Specifications
Product classification
| Product Type | Power cable assembly |
General specifications
| Application | Receive multicoupler |
| Conductor Type | RG178 |
| Conductors, quantity | 2 |
| Connector Interface | 4-pin single row header Female | SMA Male |
Dimensions
| Length | 8000 mm | 314.961 in |

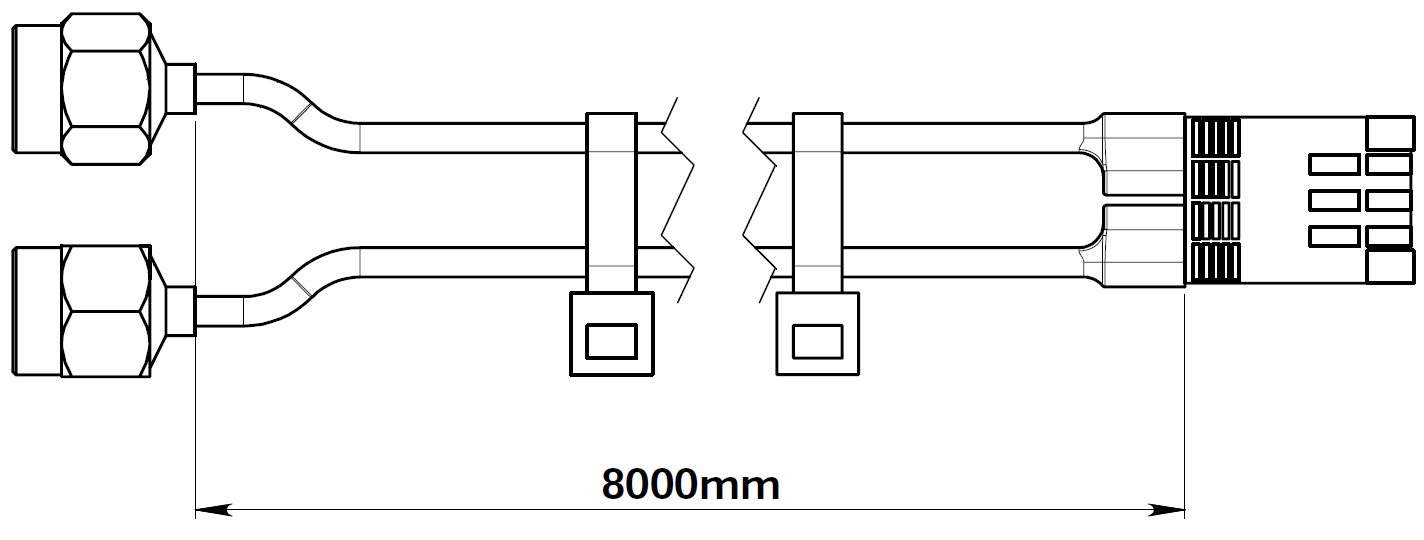

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | FEP |
Product classification
| Product Type | Power cable assembly |
General specifications
| Application | Receive multicoupler |
| Conductor Type | RG178 |
| Conductors, quantity | 2 |
| Connector Interface | 4-pin single row header Female | SMA Male |
Dimensions
| Length | 8000 mm | 314.961 in |
Material specifications
| Material Type | FEP |
| Click on image to enlarge. |
