760248797 | PFDC450-D6-6-R4-2-N3V-PWR
- Available in:
- Latin America
- North America
PFDC 450 D6 Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed tray, 6 cable attach, three ground feedthrough lugs, with test valve, FID for Power Termination and Network Power Distribution
Features and benefits
- Single-ended, O-ring sealed dome closure for splicing feeder and distribution cables
- Gel cable sealing technology allows easy adding or removing of a wide size range of cables
- Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
- PFDC splice trays hinged for access to any splice without disturbing other trays
- Closure can be used in aerial, pedestal and underground (up to 5 meters) environments
- Can hold CWDM modules and optical splitter trays
- Fault Isolation Device (FID) for power termination and Fault Managed Power safety
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Fiber and power distribution closure |
| Product Brand | PowerShift Metro® |
General specifications
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Round |
| Cable Ports Quantity, total | 6 round ports |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Flash Test Valve | Pre-installed |
| Ground Feed-through | Included |
| Mounting | Pole | Strand | Wall |
| Splice Tray Included, quantity | 0 |
| Splice Tray Type Included | No trays |
| Splicing Capacity, Mass Fusion, maximum | 3456 |
| Splicing Capacity, maximum | 3456 |
| Splicing Capacity, Single Fusion, maximum | 768 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 288 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 288 |
| Splicing Type, Supported | Mass fusion | Single fusion |
Dimensions
| Length | 753 mm | 29.646 in |
| Diameter | 254 mm | 10 in |
| Diameter, with clamp | 292 mm | 11.496 in |
| Main Cable Diameter, maximum | 25 mm | 0.984 in |

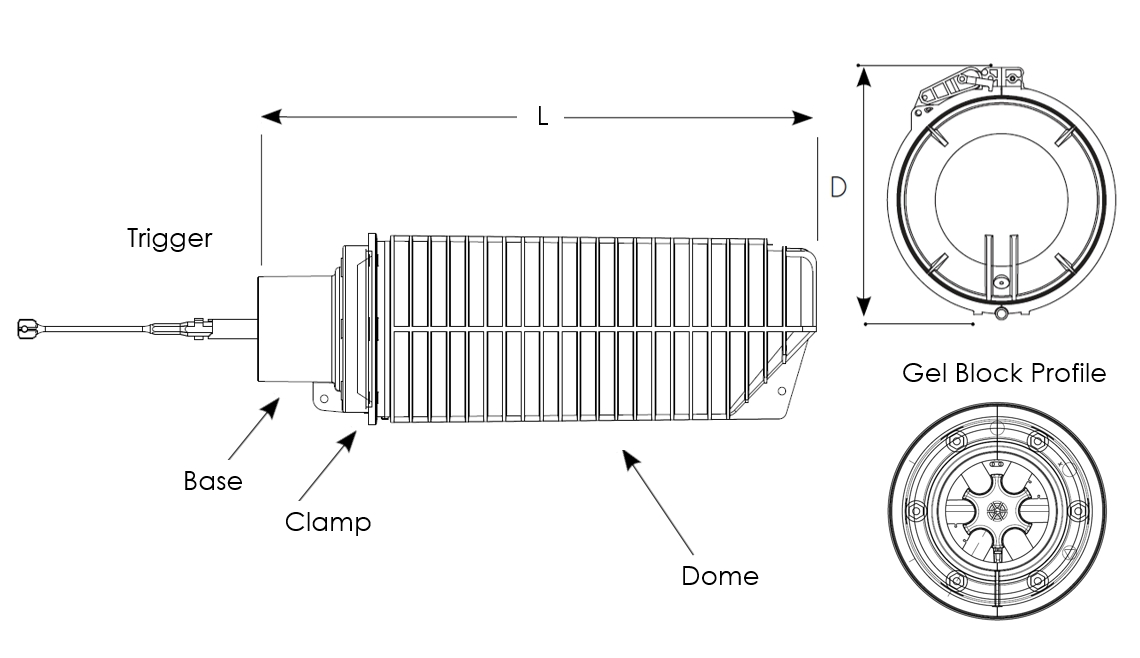

Dimension drawing
| Click on image to enlarge. |
Electrical specifications
| Input Current, maximum | 25 A |
| Input Voltage Range | ±190 Vdc (± 125 Vdc to ± 200 Vdc) |
| Output Current, maximum | 25 A |
| Output Voltage Range | ±190 Vdc (± 125 Vdc to ± 200 Vdc) |
| Communications Speed | 600 ms, based on energy reserve for Vin = ± 190V |
| Efficiency at Voltage | > 99.5% @ ± 190 V and 25 A total current |
| Operating Voltage Range | ± 75 Vdc to ± 200 Vdc |
| Voltage | ± 190 Vdc (380 Vdc with middle point) |
| Voltage, startup | ± 25 Vdc to ±30 Vdc |
Material specifications
| Material Type | Impact-resistant polymer |
Environmental specifications
| Environmental Space | Below ground | Buried |
| Qualification Standards | GR-3108 class 4 | IEC 61300, 5 m waterhead | Telcordia GR-1089 |
| Safety Standard | ATIS-060040 | UL 62368 |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
Packaging and weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 9.07 kg | 19.996 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Fiber and power distribution closure |
| Product Brand | PowerShift Metro® |
General specifications
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Round |
| Cable Ports Quantity, total | 6 round ports |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Flash Test Valve | Pre-installed |
| Ground Feed-through | Included |
| Mounting | Pole | Strand | Wall |
| Splice Tray Included, quantity | 0 |
| Splice Tray Type Included | No trays |
| Splicing Capacity, Mass Fusion, maximum | 3456 |
| Splicing Capacity, maximum | 3456 |
| Splicing Capacity, Single Fusion, maximum | 768 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 288 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 288 |
| Splicing Type, Supported | Mass fusion | Single fusion |
Dimensions
| Length | 753 mm | 29.646 in |
| Diameter | 254 mm | 10 in |
| Diameter, with clamp | 292 mm | 11.496 in |
| Main Cable Diameter, maximum | 25 mm | 0.984 in |
Electrical specifications
| Input Current, maximum | 25 A |
| Input Voltage Range | ±190 Vdc (± 125 Vdc to ± 200 Vdc) |
| Output Current, maximum | 25 A |
| Output Voltage Range | ±190 Vdc (± 125 Vdc to ± 200 Vdc) |
| Communications Speed | 600 ms, based on energy reserve for Vin = ± 190V |
| Efficiency at Voltage | > 99.5% @ ± 190 V and 25 A total current |
| Operating Voltage Range | ± 75 Vdc to ± 200 Vdc |
| Voltage | ± 190 Vdc (380 Vdc with middle point) |
| Voltage, startup | ± 25 Vdc to ±30 Vdc |
Material specifications
| Material Type | Impact-resistant polymer |
Environmental specifications
| Environmental Space | Below ground | Buried |
| Qualification Standards | GR-3108 class 4 | IEC 61300, 5 m waterhead | Telcordia GR-1089 |
| Safety Standard | ATIS-060040 | UL 62368 |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
Packaging and weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 9.07 kg | 19.996 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
