FJ-2S5-LCULCD
Base product: FJ-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
HELIAX® Discrete, outdoor rated, 2F fiber jumper, LSZH black jacket G.657.A2 cable, Uniboot LC to Clipped Duplex LC
Product variants
Configure and display product variants of FJ-2S5-LCULCD by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Cable Assembly Length | ||
|---|---|---|---|
| No configured items found. | |||
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | FJ |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Direct fiber tail |
| Interface, Connector A | LC |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Breakout Length, connector A | 99.822 mm | 3.93 in |
| Cable Assembly Length Range (m) | 1 – 200 |
| Diameter Over Jacket | 5 mm | 0.197 in |

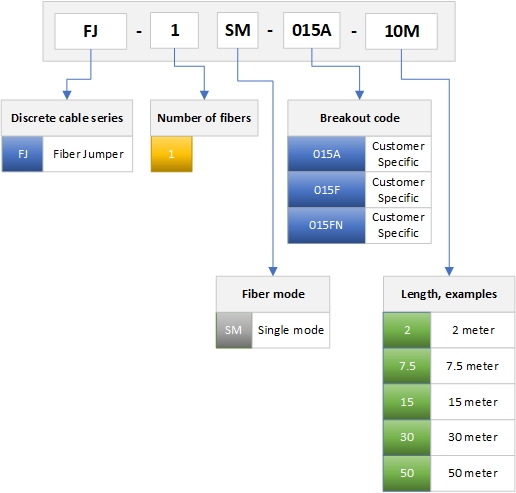

Ordering tree
| Click on image to enlarge. |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius, loaded | 100 mm | 3.937 in |
| Minimum Bend Radius, unloaded | 50 mm | 1.969 in |
| Tensile Load, long term, maximum | 1100 N | 247.290 lbf |
| Tensile Load, short term, maximum | 500 N | 112.405 lbf |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum, connector A | 50 dB |
Environmental specifications
| Installation temperature | -10 °C to +70 °C (+14 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 48 kg/km | 32.255 lb/kft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | FJ |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Direct fiber tail |
| Interface, Connector A | LC |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Breakout Length, connector A | 99.822 mm | 3.93 in |
| Cable Assembly Length Range (m) | 1 – 200 |
| Diameter Over Jacket | 5 mm | 0.197 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius, loaded | 100 mm | 3.937 in |
| Minimum Bend Radius, unloaded | 50 mm | 1.969 in |
| Tensile Load, long term, maximum | 1100 N | 247.290 lbf |
| Tensile Load, short term, maximum | 500 N | 112.405 lbf |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum, connector A | 50 dB |
Environmental specifications
| Installation temperature | -10 °C to +70 °C (+14 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 48 kg/km | 32.255 lb/kft |
