DFJ-2S5-FNNN
Base product: DFJ-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

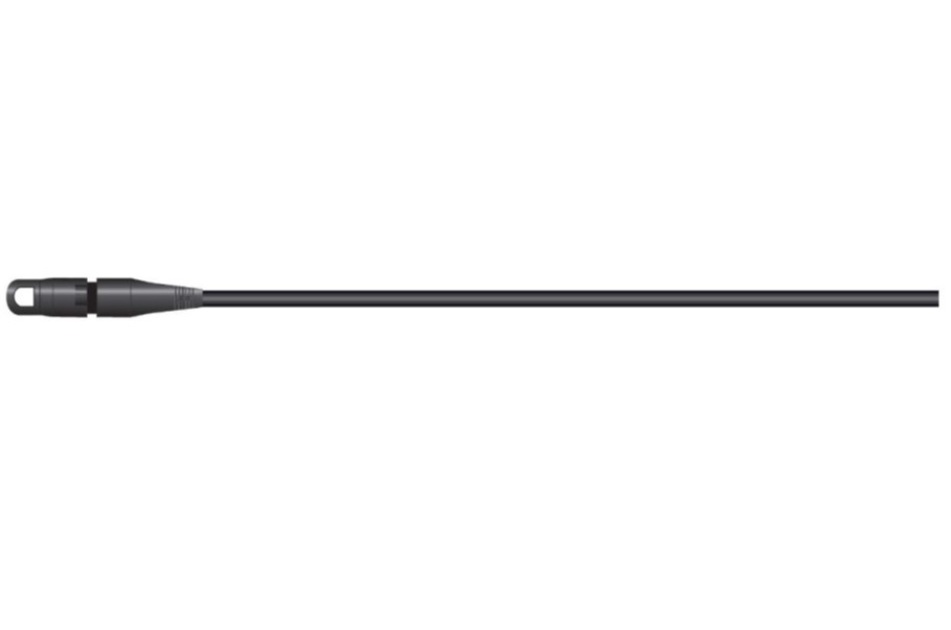

HELIAX® Discrete, outdoor rated, single mode fiber cable assembly. End 1: HMFOC (Plug) and End 2 is Open for splice.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® Standard Product in Europe |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | HMFOC |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 200 |
| Diameter Over Jacket | 5.4 mm | 0.213 in |
Ordering tree
| Click on image to enlarge. |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius | 54 mm | 2.126 in |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 54 mm | 2.126 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum, connector A | 60 dB |
| Return Loss, minimum, connector B | 60 dB |
Environmental specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 29 kg/km | 19.487 lb/kft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® Standard Product in Europe |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | HMFOC |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 200 |
| Diameter Over Jacket | 5.4 mm | 0.213 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius | 54 mm | 2.126 in |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 54 mm | 2.126 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
| Return Loss, minimum, connector A | 60 dB |
| Return Loss, minimum, connector B | 60 dB |
Environmental specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 29 kg/km | 19.487 lb/kft |
| Click on image to enlarge. |
