252138
Base product: ENTRY-PANEL-SERIES

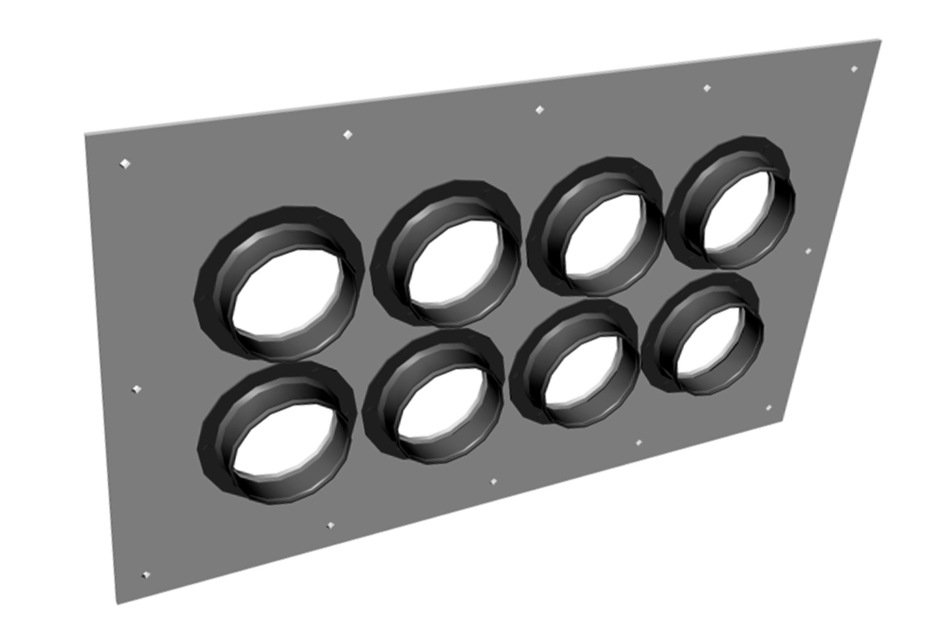

Eight 4" Port Entrance Panel, 2" x 4"
Specifications
Product classification
| Product Type | Entrance panel |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color | Gray |
| Entry Panel Port Size | 101.6 mm | 4 in |
| Number of Ports | 8 |
| Panel Type | Multiple |
Dimensions
| Height | 444.500 mm | 17.5 in |
| Width | 647.700 mm | 25.5 in |
Material specifications
| Material Type | Aluminum |
Environmental specifications
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and weights
| Height, packed | 668.02 mm | 26.3 in |
| Width, packed | 459.74 mm | 18.1 in |
| Length, packed | 459.994 mm | 18.11 in |
| Included | Entry cap | Hardware | Port |
| Packaging quantity | 1 |
| Weight, gross | 2.5 kg | 5.512 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Entrance panel |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color | Gray |
| Entry Panel Port Size | 101.6 mm | 4 in |
| Number of Ports | 8 |
| Panel Type | Multiple |
Dimensions
| Height | 444.500 mm | 17.5 in |
| Width | 647.700 mm | 25.5 in |
Material specifications
| Material Type | Aluminum |
Environmental specifications
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and weights
| Height, packed | 668.02 mm | 26.3 in |
| Width, packed | 459.74 mm | 18.1 in |
| Length, packed | 459.994 mm | 18.11 in |
| Included | Entry cap | Hardware | Port |
| Packaging quantity | 1 |
| Weight, gross | 2.5 kg | 5.512 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
