204673-20
Base product: ENTRY-PANEL-SERIES

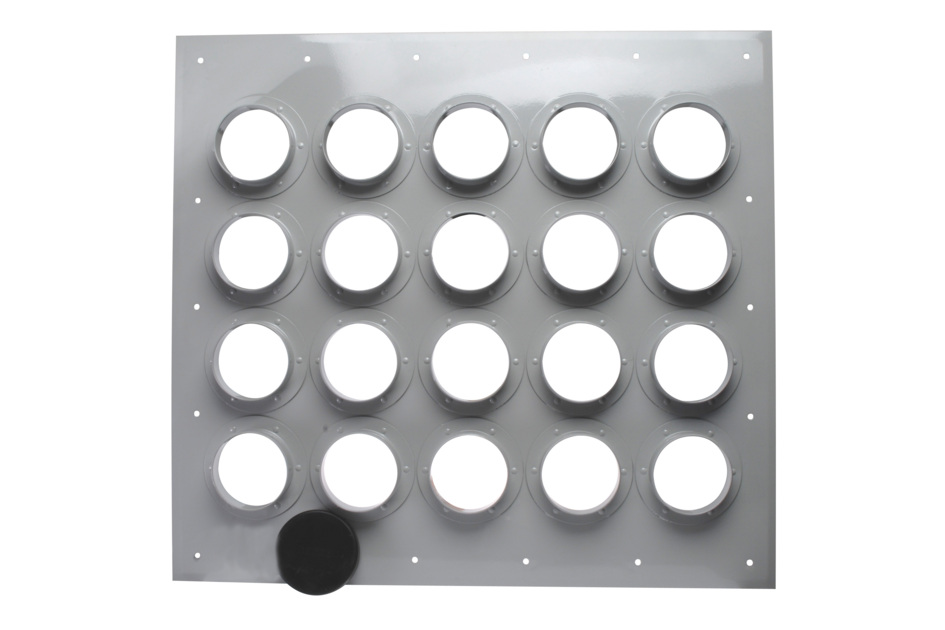

Twenty 4" Port Entrance Panel, 4" x 5"
Specifications
Product classification
| Product Type | Entrance panel |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color | Gray |
| Entry Panel Port Size | 101.6 mm | 4 in |
| Number of Ports | 20 |
| Panel Type | Multiple |
Dimensions
| Height | 731.52 mm | 28.8 in |
| Width | 787.4 mm | 31 in |
Material specifications
| Material Type | Aluminum |
Environmental specifications
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and weights
| Height, packed | 787.4 mm | 31 in |
| Width, packed | 647.7 mm | 25.5 in |
| Length, packed | 50.8 mm | 2 in |
| Included | Entry cap | Hardware | Port |
| Packaging quantity | 1 |
| Weight, gross | 5 kg | 11.023 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
