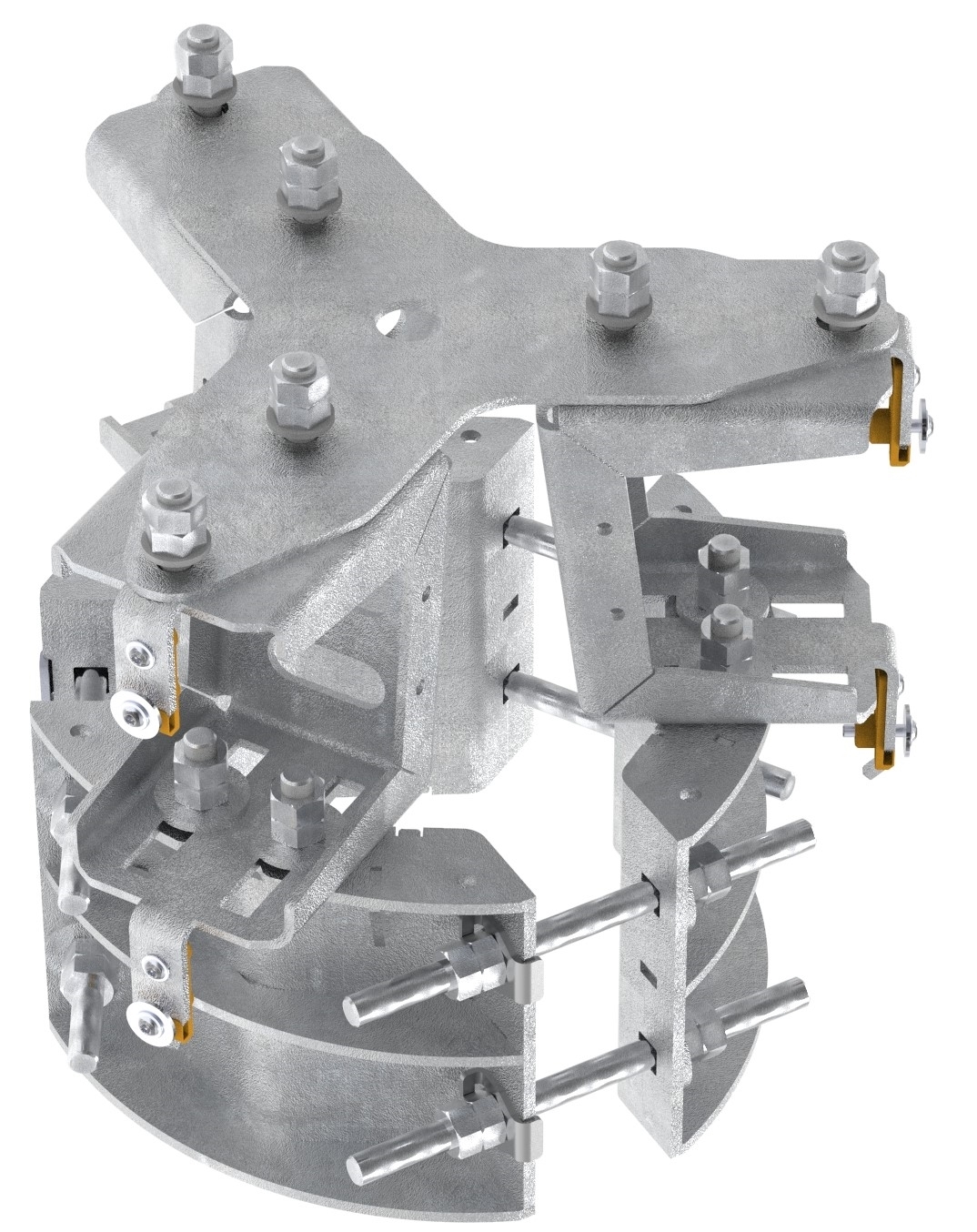

TS-MNT-TOP-370
Pipe Mounting KIT with shroud, capability of mounting 37cm diameter round antennas (with trident mounting bracket, max length 2.1m, max weight 56kg) on the top of a pole with diameter from Ø150 to Ø273mm
Specifications
Product classification
| Product Type | Mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 273 mm | 10.748 in |
| Compatible Diameter, minimum | 150 mm | 5.906 in |
| Weight, net | 16.5 kg | 36.376 lb |
Application drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Weight, gross | 20 kg | 44.092 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Product Type | Mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 273 mm | 10.748 in |
| Compatible Diameter, minimum | 150 mm | 5.906 in |
| Weight, net | 16.5 kg | 36.376 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Weight, gross | 20 kg | 44.092 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
