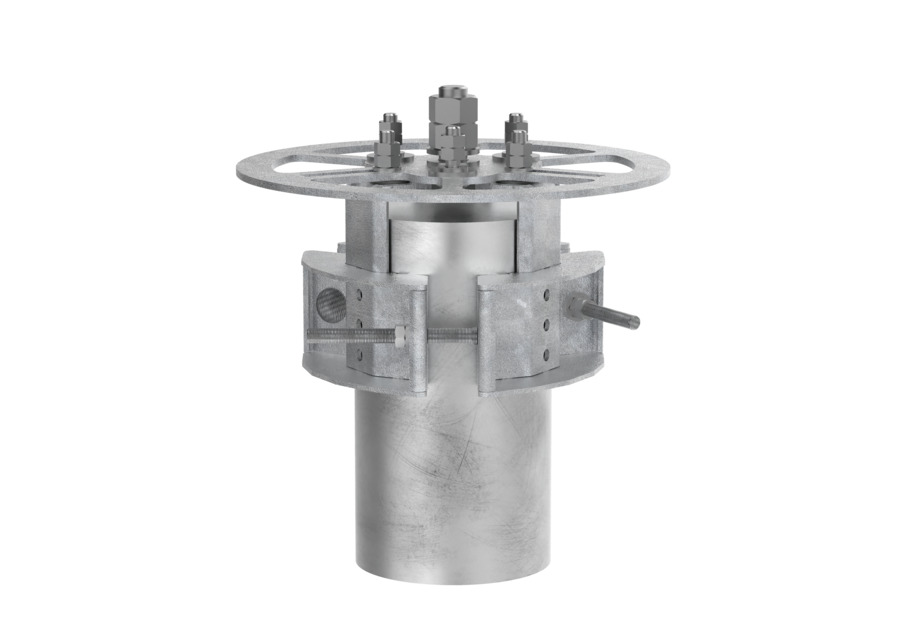

MC-MNT-TOP-370
Heavyweight Small Cell mounting kit with shroud. Capability of mounting round antenna types on the top of a pole. For installations of 14.6 inch canister small cell antennas on top of poles with diameter from 165 to 216mm (6.5” to 8.5”)
Specifications
Product classification
| Product Type | Pole mount kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 216 mm | 8.504 in |
| Compatible Diameter, minimum | 165 mm | 6.496 in |
| Weight, net | 11.2 kg | 24.692 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Weight, gross | 16.2 kg | 35.715 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Pole mount kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 216 mm | 8.504 in |
| Compatible Diameter, minimum | 165 mm | 6.496 in |
| Weight, net | 11.2 kg | 24.692 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Weight, gross | 16.2 kg | 35.715 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
