SSP-65T-F-V3
6-port small cell antenna, 4x 3300–3800 MHz, 2x 5150–5925 MHz, 65° HPBW, fixed electrical tilt
Features and benefits
- Designed for strand mounting with OEM equipment
- In cases where the antenna is to be mounted on a customer supplied pole (40-100mm diameter), Qty1 Mounting Kit Part No. BSAMNT-S should be purchased separately
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA+PC, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | NEX10 Female |
| RF Connector Location | Side back |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 6 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, antenna only | 0.8 kg | 1.764 lb |

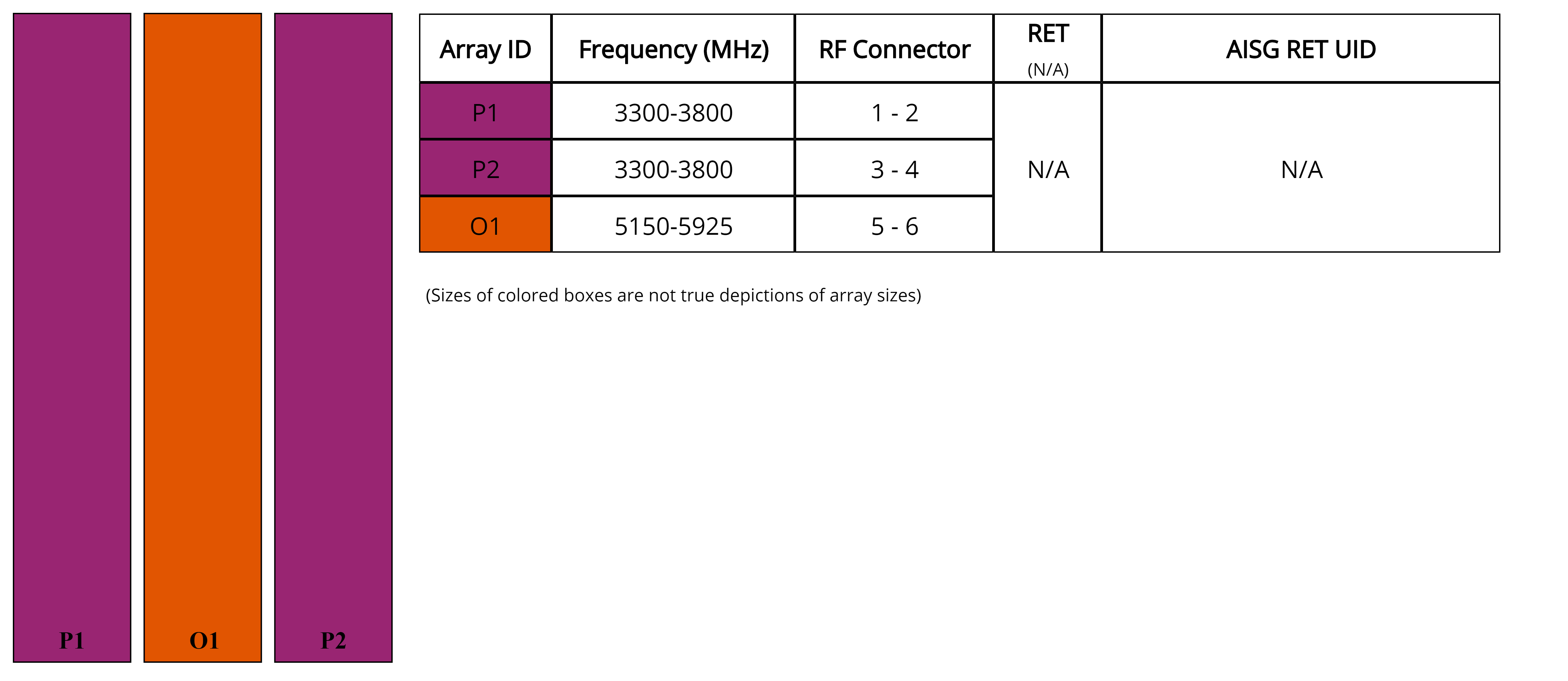

Array layout
| Click on image to enlarge. |

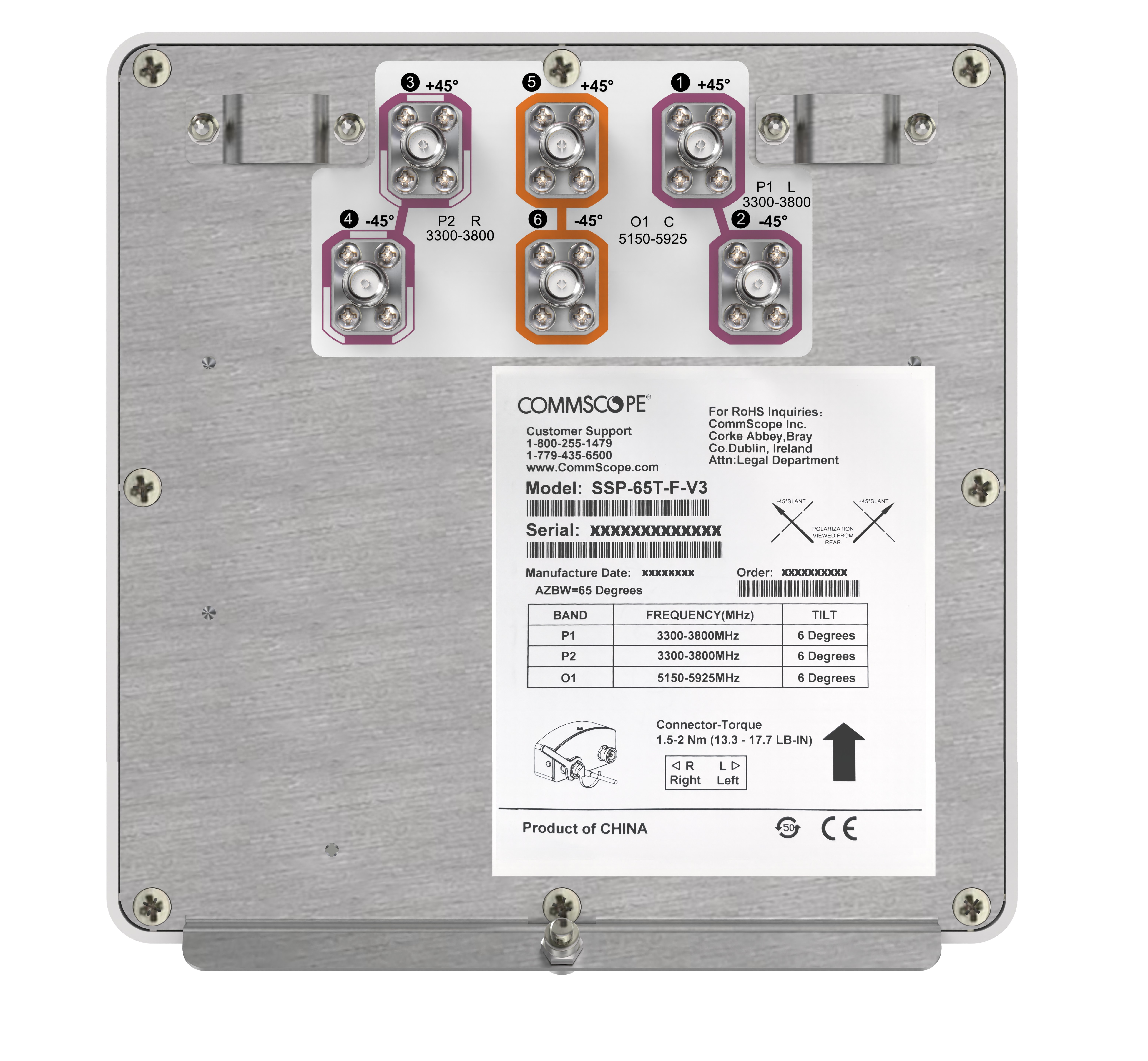

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| P1,P2 | O1 | |
| Frequency Band, MHz | 3300–3800 | 5150–5925 |
| RF Port | 1,2,3,4 | 5,6 |
| Gain, dBi | 12.0 | 2.8 |
| Beamwidth, Horizontal, degrees | 68 | 65 |
| Beamwidth, Vertical, degrees | 28 | 27 |
| Beam Tilt, degrees | 6 | 6 |
| USLS (First Lobe), dB | 14 | 14 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 25 | 23 |
| Isolation, Cross Polarization, dB | 22 | 22 |
| Isolation, Inter-band, dB | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 50 | 10 |
Electrical specifications, basta
| Frequency Band, MHz | 3300–3800 | 5150–5925 |
| Gain by all Beam Tilts, average, dBi | 11.6 | 2.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.8 | ±1.1 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.9 | ±20 |
| Beamwidth, Vertical Tolerance, degrees | ±3.5 | ±2.7 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 21 |
| CPR at Boresight, dB | 19 | 16 |
| CPR at Sector, dB | 10 | 2 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.4 N @ 150 km/h (3.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 250 mm | 9.843 in |
| Depth, packed | 125 mm | 4.921 in |
| Length, packed | 250 mm | 9.843 in |
| Weight, gross | 1.1 kg | 2.425 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA+PC, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | NEX10 Female |
| RF Connector Location | Side back |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 6 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, antenna only | 0.8 kg | 1.764 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| P1,P2 | O1 | |
| Frequency Band, MHz | 3300–3800 | 5150–5925 |
| RF Port | 1,2,3,4 | 5,6 |
| Gain, dBi | 12.0 | 2.8 |
| Beamwidth, Horizontal, degrees | 68 | 65 |
| Beamwidth, Vertical, degrees | 28 | 27 |
| Beam Tilt, degrees | 6 | 6 |
| USLS (First Lobe), dB | 14 | 14 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 25 | 23 |
| Isolation, Cross Polarization, dB | 22 | 22 |
| Isolation, Inter-band, dB | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 50 | 10 |
Electrical specifications, basta
| Frequency Band, MHz | 3300–3800 | 5150–5925 |
| Gain by all Beam Tilts, average, dBi | 11.6 | 2.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.8 | ±1.1 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.9 | ±20 |
| Beamwidth, Vertical Tolerance, degrees | ±3.5 | ±2.7 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 21 |
| CPR at Boresight, dB | 19 | 16 |
| CPR at Sector, dB | 10 | 2 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.4 N @ 150 km/h (3.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 250 mm | 9.843 in |
| Depth, packed | 125 mm | 4.921 in |
| Length, packed | 250 mm | 9.843 in |
| Weight, gross | 1.1 kg | 2.425 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
