NNHH-65C-R4-V1

8-port sector antenna, 4x 698–896 and 4x 1695–2360 MHz, 65° HPBW, 4x RETs

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Array configuration provides capability for 4T4R (4x MIMO) on Low band and High band
Optimized SPR performance across all operating bands
Excellent wind loading characteristics

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

Remote electrical tilt (ret) information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	2438 mm \| 95.984 in
Net Weight, without mounting kit	45.5 kg \| 100.31 lb

Array layout

Click on image to enlarge.

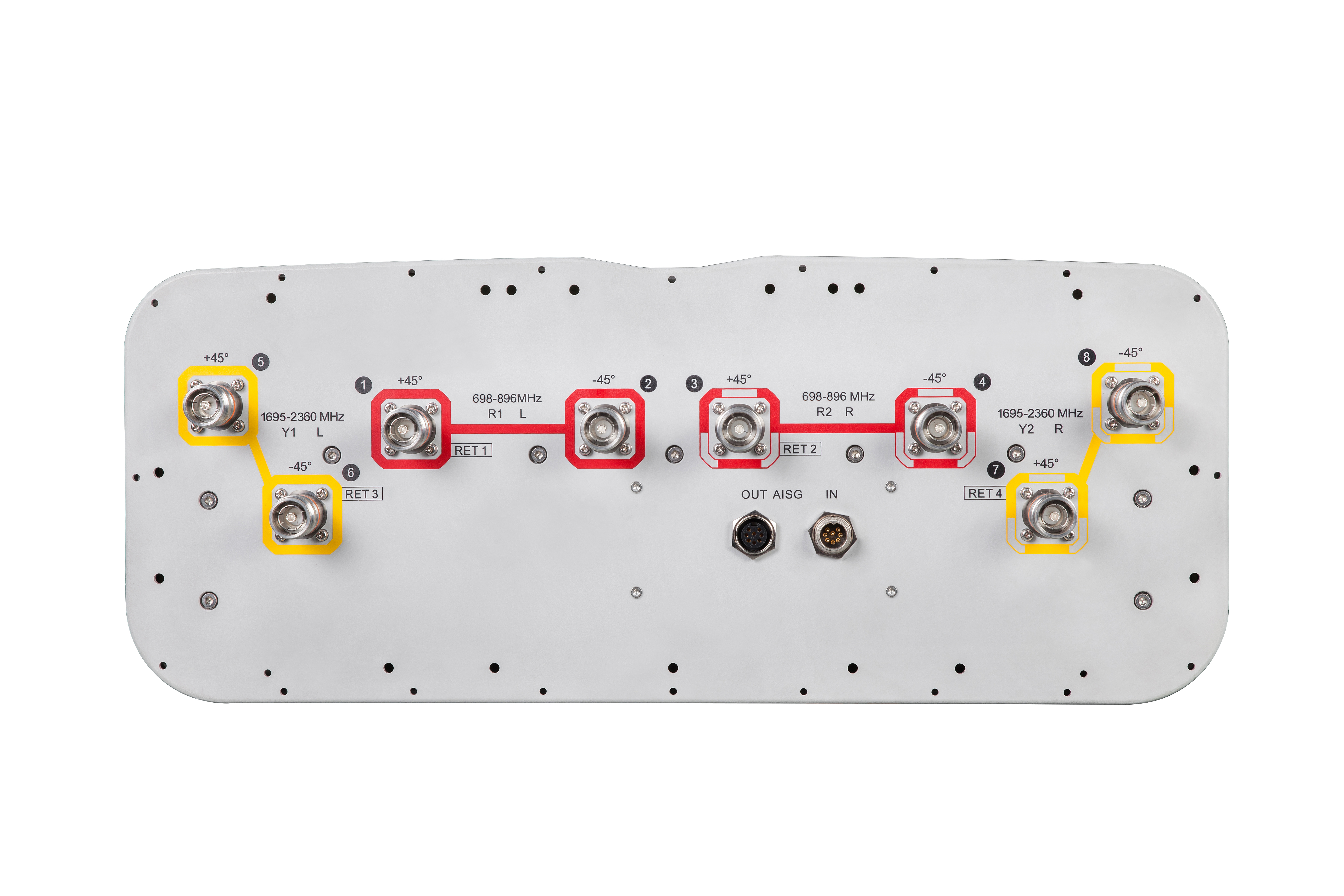

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	698 – 896 MHz \| 1695 – 2360 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical specifications

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2180	2300–2360
Gain, dBi	15.7	16.1	18.3	18.8	19.1	19.3
Beamwidth, Horizontal, degrees	73	71	58	59	61	59
Beamwidth, Vertical, degrees	9.8	8.6	5.4	5	4.7	4.2
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	21	20	19	19	20	20
Front-to-Back Ratio at 180°, dB	28	32	37	38	39	36
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153
Input Power per Port at 50°C, maximum, watts	300	300	250	250	250	200

Electrical specifications, basta

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2180	2300–2360
Gain by all Beam Tilts, average, dBi	15.3	15.9	17.9	18.6	18.8	19.0
Gain by all Beam Tilts Tolerance, dB	±0.5	±0.5	±0.8	±0.3	±0.4	±0.4
Gain by Beam Tilt, average, dBi	2 ° \| 15.2 7 ° \| 15.4 12 ° \| 15.2	2 ° \| 15.7 7 ° \| 16.0 12 ° \| 15.8	2 ° \| 17.6 7 ° \| 18.0 12 ° \| 17.8	2 ° \| 18.4 7 ° \| 18.7 12 ° \| 18.5	2 ° \| 18.5 7 ° \| 19.0 12 ° \| 18.7	2 ° \| 18.8 7 ° \| 19.1 12 ° \| 18.8
Beamwidth, Horizontal Tolerance, degrees	±3	±3.3	±4.4	±2.6	±3.6	±4.9
Beamwidth, Vertical Tolerance, degrees	±0.7	±0.6	±0.3	±0.2	±0.3	±0.2
USLS, beampeak to 20° above beampeak, dB	16	16	16	17	18	17
Front-to-Back Total Power at 180° ± 30°, dB	23	22	30	33	30	29
CPR at Boresight, dB	22	24	19	23	22	18
CPR at Sector, dB	10	7	8	9	8	7

Mechanical specifications

Effective Projective Area (EPA), frontal	0.9 m² \| 9.688 ft²
Effective Projective Area (EPA), lateral	0.31 m² \| 3.337 ft²
Mechanical Tilt Range	0°–10°
Wind Loading @ Velocity, frontal	954.0 N @ 150 km/h (214.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	331.0 N @ 150 km/h (74.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,235.0 N @ 150 km/h (277.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	785.0 N @ 150 km/h (176.5 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and weights

Width, packed	565 mm \| 22.244 in
Depth, packed	309 mm \| 12.165 in
Length, packed	2685 mm \| 105.709 in
Weight, gross	63.1 kg \| 139.112 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

Remote electrical tilt (ret) information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	2438 mm \| 95.984 in
Net Weight, without mounting kit	45.5 kg \| 100.31 lb

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	698 – 896 MHz \| 1695 – 2360 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical specifications

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2180	2300–2360
Gain, dBi	15.7	16.1	18.3	18.8	19.1	19.3
Beamwidth, Horizontal, degrees	73	71	58	59	61	59
Beamwidth, Vertical, degrees	9.8	8.6	5.4	5	4.7	4.2
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	21	20	19	19	20	20
Front-to-Back Ratio at 180°, dB	28	32	37	38	39	36
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153
Input Power per Port at 50°C, maximum, watts	300	300	250	250	250	200

Electrical specifications, basta

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2180	2300–2360
Gain by all Beam Tilts, average, dBi	15.3	15.9	17.9	18.6	18.8	19.0
Gain by all Beam Tilts Tolerance, dB	±0.5	±0.5	±0.8	±0.3	±0.4	±0.4
Gain by Beam Tilt, average, dBi	2 ° \| 15.2; 7 ° \| 15.4;12 ° \| 15.2	2 ° \| 15.7; 7 ° \| 16.0;12 ° \| 15.8	2 ° \| 17.6; 7 ° \| 18.0;12 ° \| 17.8	2 ° \| 18.4; 7 ° \| 18.7;12 ° \| 18.5	2 ° \| 18.5; 7 ° \| 19.0;12 ° \| 18.7	2 ° \| 18.8; 7 ° \| 19.1;12 ° \| 18.8
Beamwidth, Horizontal Tolerance, degrees	±3	±3.3	±4.4	±2.6	±3.6	±4.9
Beamwidth, Vertical Tolerance, degrees	±0.7	±0.6	±0.3	±0.2	±0.3	±0.2
USLS, beampeak to 20° above beampeak, dB	16	16	16	17	18	17
Front-to-Back Total Power at 180° ± 30°, dB	23	22	30	33	30	29
CPR at Boresight, dB	22	24	19	23	22	18
CPR at Sector, dB	10	7	8	9	8	7

Mechanical specifications

Effective Projective Area (EPA), frontal	0.9 m² \| 9.688 ft²
Effective Projective Area (EPA), lateral	0.31 m² \| 3.337 ft²
Mechanical Tilt Range	0°–10°
Wind Loading @ Velocity, frontal	954.0 N @ 150 km/h (214.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	331.0 N @ 150 km/h (74.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,235.0 N @ 150 km/h (277.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	785.0 N @ 150 km/h (176.5 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and weights

Width, packed	565 mm \| 22.244 in
Depth, packed	309 mm \| 12.165 in
Length, packed	2685 mm \| 105.709 in
Weight, gross	63.1 kg \| 139.112 lb

Click on image to enlarge.

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
