NNH4-65A-R6
12-port sector antenna, 4x 698–896 and 8x 1695–2360 MHz, 65° HPBW, 6x RET.
Features and benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Array configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High band
- Optimized SPR performance across all operating bands
- Excellent wind loading characteristics
- The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (4) | Low band (2) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 1400 mm | 55.118 in |
| Net Weight, without mounting kit | 33.5 kg | 73.855 lb |

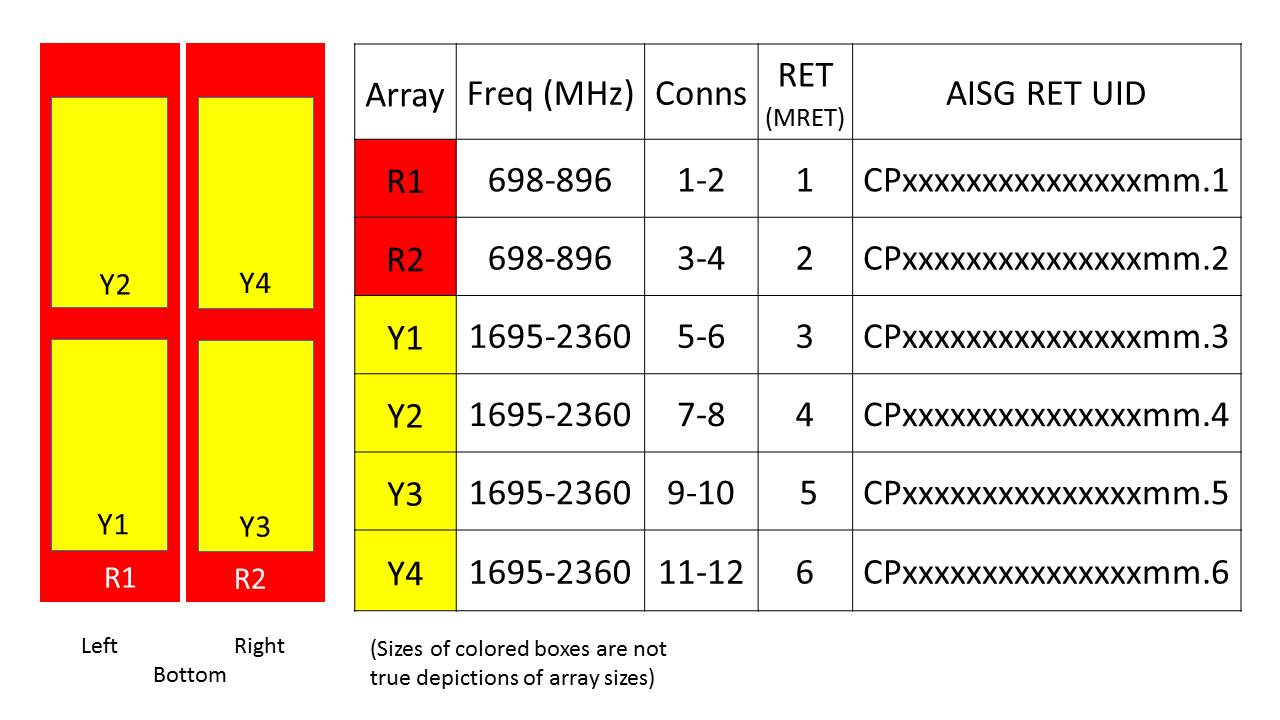

Array layout
| Click on image to enlarge. |

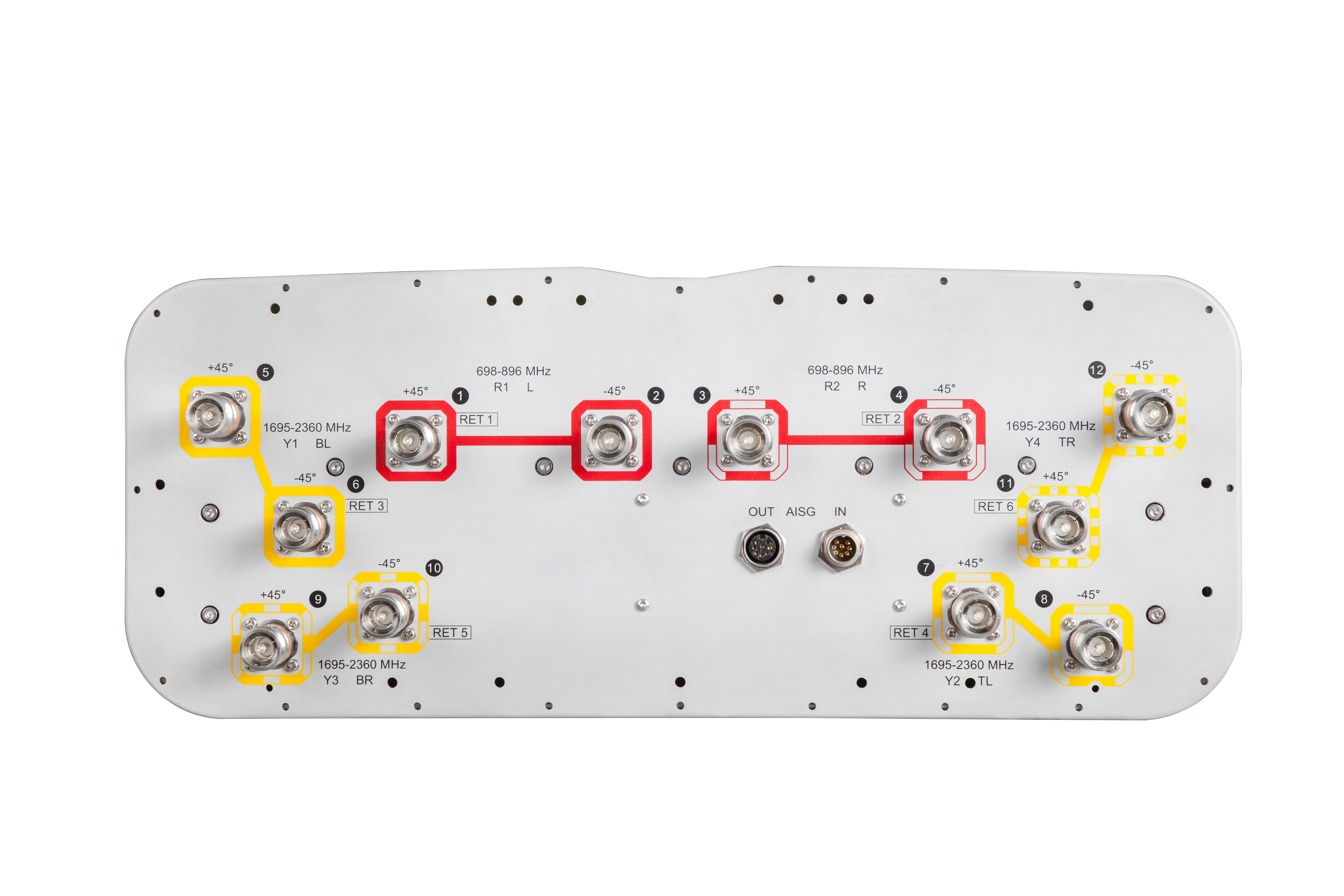

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain, dBi | 13.2 | 13.8 | 14.0 | 14.7 | 14.8 | 15.2 |
| Beamwidth, Horizontal, degrees | 72 | 63 | 59 | 60 | 62 | 59 |
| Beamwidth, Vertical, degrees | 16.4 | 14.9 | 15.7 | 14.6 | 13.9 | 12.4 |
| Beam Tilt, degrees | 2–16 | 2–16 | 2–16 | 2–16 | 2–16 | 2–16 |
| USLS (First Lobe), dB | 15 | 19 | 16 | 18 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 30 | 34 | 35 | 34 | 35 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 | 250 | 250 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 12.9 | 13.3 | 13.5 | 14.4 | 14.5 | 14.9 |
| Gain by all Beam Tilts Tolerance, dB | ±0.4 | ±0.6 | ±0.8 | ±0.5 | ±0.4 | ±0.5 |
| Gain by Beam Tilt, average, dBi | 2 ° | 13.0 9 ° | 12.9 16 ° | 12.7 |
2 ° | 13.5 9 ° | 13.4 16 ° | 13.0 |
2 ° | 13.6 9 ° | 13.6 16 ° | 13.4 |
2 ° | 14.5 9 ° | 14.4 16 ° | 14.2 |
2 ° | 14.6 9 ° | 14.5 16 ° | 14.3 |
2 ° | 15.1 9 ° | 14.9 16 ° | 14.6 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.1 | ±4.9 | ±5.6 | ±3.8 | ±3.7 | ±7.4 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±1.3 | ±1.3 | ±0.8 | ±1 | ±0.8 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 19 | 18 | 19 | 18 | 18 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 21 | 28 | 30 | 28 | 26 |
| CPR at Boresight, dB | 21 | 22 | 16 | 21 | 21 | 19 |
| CPR at Sector, dB | 11 | 4 | 7 | 9 | 9 | 11 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.48 m² | 5.167 ft² |
| Effective Projective Area (EPA), lateral | 0.16 m² | 1.722 ft² |
| Mechanical Tilt Range | 0°–15° |
| Wind Loading @ Velocity, frontal | 509.0 N @ 150 km/h (114.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 660.0 N @ 150 km/h (148.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 419.0 N @ 150 km/h (94.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 608 mm | 23.937 in |
| Depth, packed | 352 mm | 13.858 in |
| Length, packed | 1582 mm | 62.283 in |
| Weight, gross | 41 kg | 90.389 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (4) | Low band (2) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 1400 mm | 55.118 in |
| Net Weight, without mounting kit | 33.5 kg | 73.855 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain, dBi | 13.2 | 13.8 | 14.0 | 14.7 | 14.8 | 15.2 |
| Beamwidth, Horizontal, degrees | 72 | 63 | 59 | 60 | 62 | 59 |
| Beamwidth, Vertical, degrees | 16.4 | 14.9 | 15.7 | 14.6 | 13.9 | 12.4 |
| Beam Tilt, degrees | 2–16 | 2–16 | 2–16 | 2–16 | 2–16 | 2–16 |
| USLS (First Lobe), dB | 15 | 19 | 16 | 18 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 30 | 34 | 35 | 34 | 35 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 | 250 | 250 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 12.9 | 13.3 | 13.5 | 14.4 | 14.5 | 14.9 |
| Gain by all Beam Tilts Tolerance, dB | ±0.4 | ±0.6 | ±0.8 | ±0.5 | ±0.4 | ±0.5 |
| Gain by Beam Tilt, average, dBi | 2 ° | 13.0; 9 ° | 12.9;16 ° | 12.7 | 2 ° | 13.5; 9 ° | 13.4;16 ° | 13.0 | 2 ° | 13.6; 9 ° | 13.6;16 ° | 13.4 | 2 ° | 14.5; 9 ° | 14.4;16 ° | 14.2 | 2 ° | 14.6; 9 ° | 14.5;16 ° | 14.3 | 2 ° | 15.1; 9 ° | 14.9;16 ° | 14.6 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.1 | ±4.9 | ±5.6 | ±3.8 | ±3.7 | ±7.4 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±1.3 | ±1.3 | ±0.8 | ±1 | ±0.8 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 19 | 18 | 19 | 18 | 18 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 21 | 28 | 30 | 28 | 26 |
| CPR at Boresight, dB | 21 | 22 | 16 | 21 | 21 | 19 |
| CPR at Sector, dB | 11 | 4 | 7 | 9 | 9 | 11 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.48 m² | 5.167 ft² |
| Effective Projective Area (EPA), lateral | 0.16 m² | 1.722 ft² |
| Mechanical Tilt Range | 0°–15° |
| Wind Loading @ Velocity, frontal | 509.0 N @ 150 km/h (114.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 660.0 N @ 150 km/h (148.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 419.0 N @ 150 km/h (94.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 608 mm | 23.937 in |
| Depth, packed | 352 mm | 13.858 in |
| Length, packed | 1582 mm | 62.283 in |
| Weight, gross | 41 kg | 90.389 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Installation & videos
Installation instruction
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
