NNH4-45A-R3B-V1
12-port sector antenna, 4x 698–896 and 8x 1695–2360 MHz, 45° HPBW, 3x RET
Features and benefits
- Features broadband Low Band (698-896 MHz) and High Band (1695-2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS and WCS applications
- Independent tilt for all arrays
- Optimized SPR performance across all operating bands
- Excellent wind loading characteristics
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 | Port 5 |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1399 mm | 55.079 in |
| Net Weight, without mounting kit | 30.2 kg | 66.58 lb |

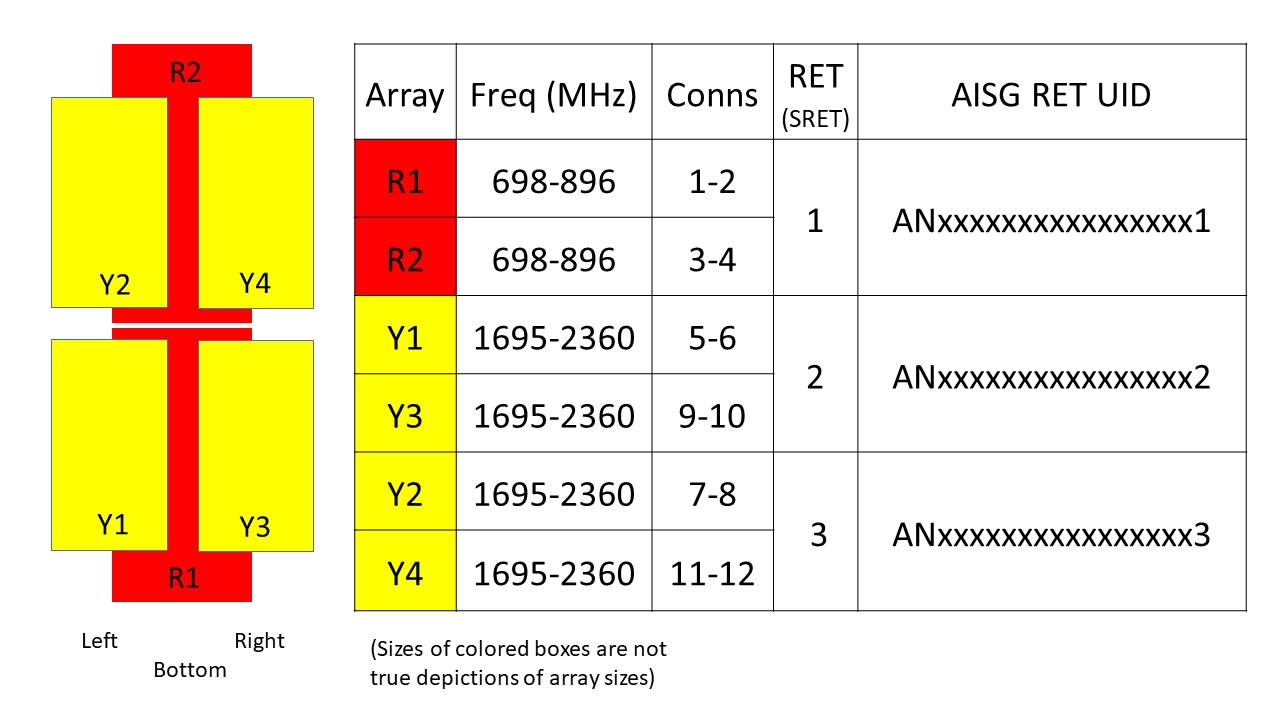

Array layout
| Click on image to enlarge. |

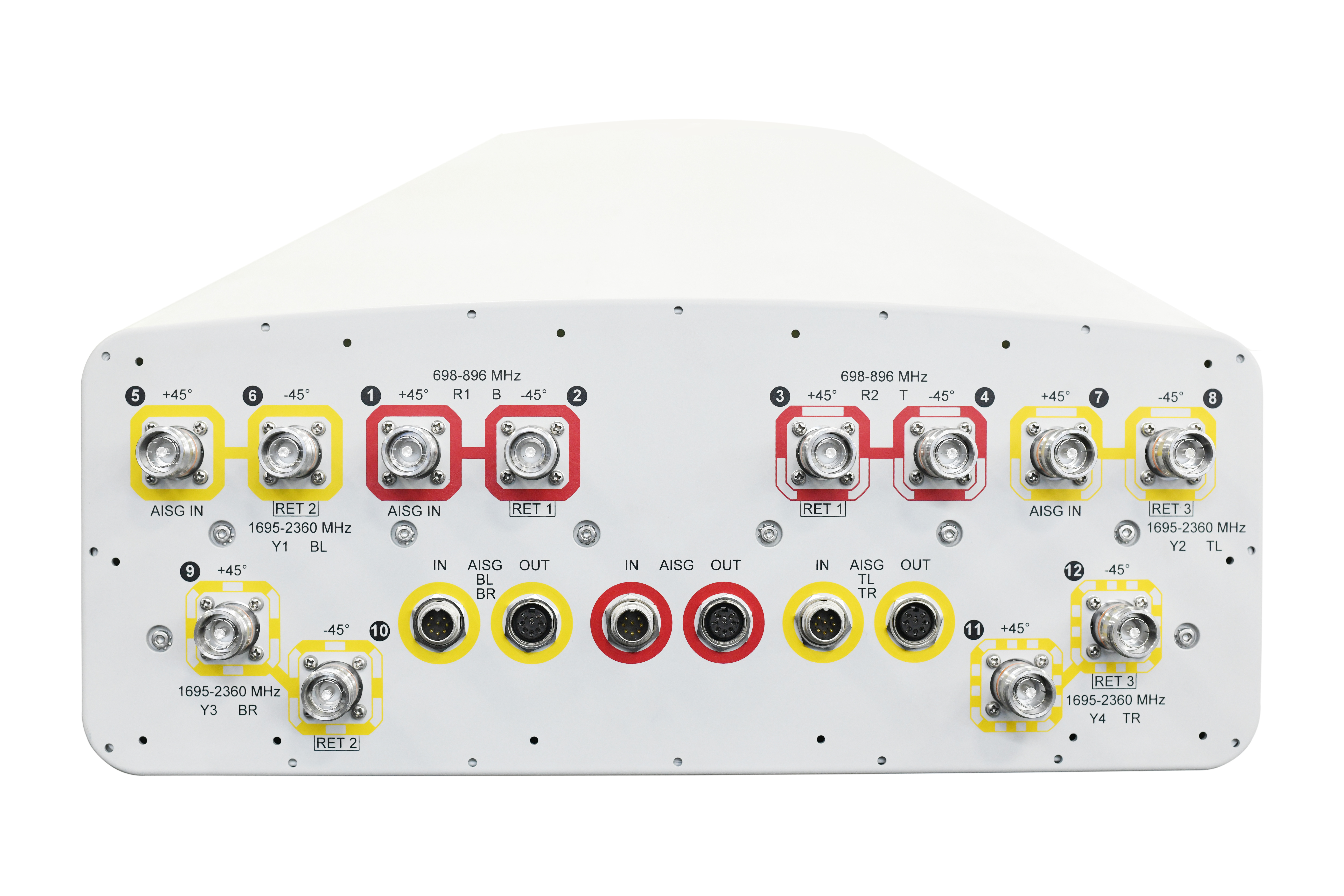

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain, dBi | 12.9 | 13.8 | 15.4 | 16.0 | 16.3 | 16.8 |
| Beamwidth, Horizontal, degrees | 49 | 43 | 44 | 43 | 41 | 38 |
| Beamwidth, Vertical, degrees | 35.5 | 30.4 | 15.2 | 13.9 | 13 | 11.6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 17 | 16 | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 33 | 34 | 34 | 36 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 12.4 | 13.3 | 14.9 | 15.5 | 15.9 | 16.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.8 | ±0.7 | ±0.7 | ±0.6 | ±0.7 | ±0.7 |
| Gain by Beam Tilt, average, dBi | 2 ° | 12.4 10 ° | 12.5 18 ° | 12.2 |
2 ° | 13.5 10 ° | 13.5 18 ° | 13.0 |
2 ° | 15.1 7 ° | 14.9 12 ° | 14.7 |
2 ° | 15.6 7 ° | 15.5 12 ° | 15.3 |
2 ° | 16.0 7 ° | 16.0 12 ° | 15.6 |
2 ° | 16.7 7 ° | 16.4 12 ° | 16.0 |
| Beamwidth, Horizontal Tolerance, degrees | ±3.4 | ±3.8 | ±2.5 | ±1.4 | ±2.3 | ±2.2 |
| Beamwidth, Vertical Tolerance, degrees | ±3.1 | ±3 | ±1.2 | ±1.1 | ±1.3 | ±0.9 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 25 | 27 | 27 | 28 | 28 |
| CPR at Boresight, dB | 26 | 29 | 18 | 21 | 21 | 20 |
| CPR at 10 dB Horizontal Beamwidth, dB | 13 | 13 | 7 | 9 | 10 | 12 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.74 m² | 7.965 ft² |
| Effective Projective Area (EPA), lateral | 0.15 m² | 1.615 ft² |
| Mechanical Tilt Range | 0°–22° |
| Wind Loading @ Velocity, frontal | 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 159.0 N @ 150 km/h (35.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 692.0 N @ 150 km/h (155.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 526 mm | 20.709 in |
| Depth, packed | 283 mm | 11.142 in |
| Length, packed | 1566 mm | 61.654 in |
| Weight, gross | 42.3 kg | 93.255 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 | Port 5 |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1399 mm | 55.079 in |
| Net Weight, without mounting kit | 30.2 kg | 66.58 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain, dBi | 12.9 | 13.8 | 15.4 | 16.0 | 16.3 | 16.8 |
| Beamwidth, Horizontal, degrees | 49 | 43 | 44 | 43 | 41 | 38 |
| Beamwidth, Vertical, degrees | 35.5 | 30.4 | 15.2 | 13.9 | 13 | 11.6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 17 | 16 | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 33 | 34 | 34 | 36 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 12.4 | 13.3 | 14.9 | 15.5 | 15.9 | 16.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.8 | ±0.7 | ±0.7 | ±0.6 | ±0.7 | ±0.7 |
| Gain by Beam Tilt, average, dBi | 2 ° | 12.4;10 ° | 12.5; 18 ° | 12.2 | 2 ° | 13.5;10 ° | 13.5; 18 ° | 13.0 | 2 ° | 15.1; 7 ° | 14.9;12 ° | 14.7 | 2 ° | 15.6; 7 ° | 15.5;12 ° | 15.3 | 2 ° | 16.0; 7 ° | 16.0;12 ° | 15.6 | 2 ° | 16.7; 7 ° | 16.4;12 ° | 16.0 |
| Beamwidth, Horizontal Tolerance, degrees | ±3.4 | ±3.8 | ±2.5 | ±1.4 | ±2.3 | ±2.2 |
| Beamwidth, Vertical Tolerance, degrees | ±3.1 | ±3 | ±1.2 | ±1.1 | ±1.3 | ±0.9 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 25 | 27 | 27 | 28 | 28 |
| CPR at Boresight, dB | 26 | 29 | 18 | 21 | 21 | 20 |
| CPR at 10 dB Horizontal Beamwidth, dB | 13 | 13 | 7 | 9 | 10 | 12 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.74 m² | 7.965 ft² |
| Effective Projective Area (EPA), lateral | 0.15 m² | 1.615 ft² |
| Mechanical Tilt Range | 0°–22° |
| Wind Loading @ Velocity, frontal | 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 159.0 N @ 150 km/h (35.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 692.0 N @ 150 km/h (155.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 526 mm | 20.709 in |
| Depth, packed | 283 mm | 11.142 in |
| Length, packed | 1566 mm | 61.654 in |
| Weight, gross | 42.3 kg | 93.255 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Installation & videos
Installation instruction
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
